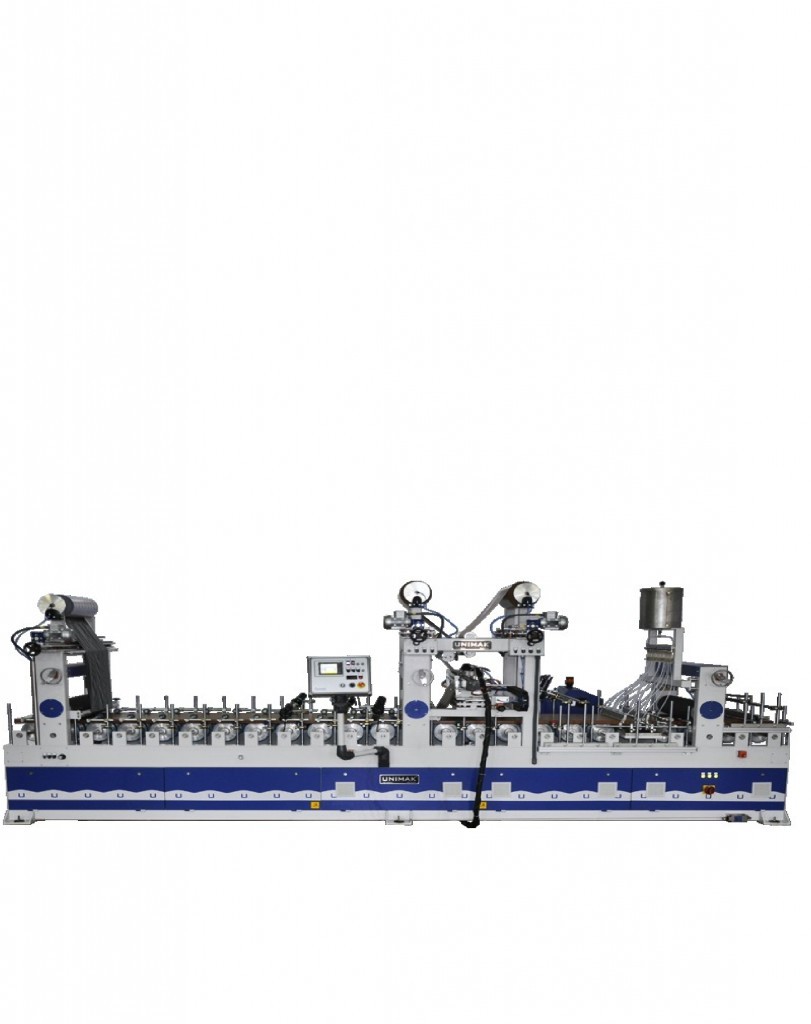

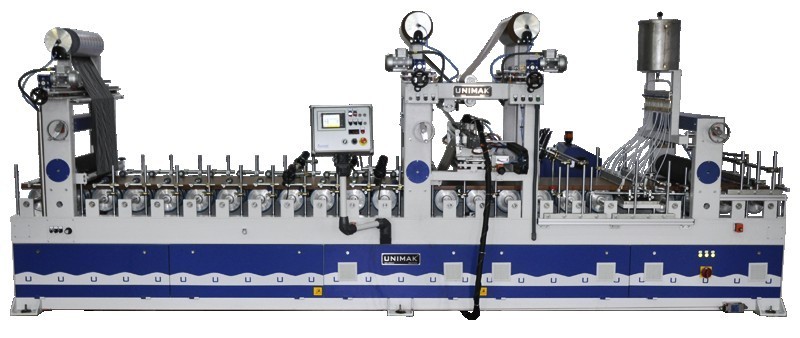

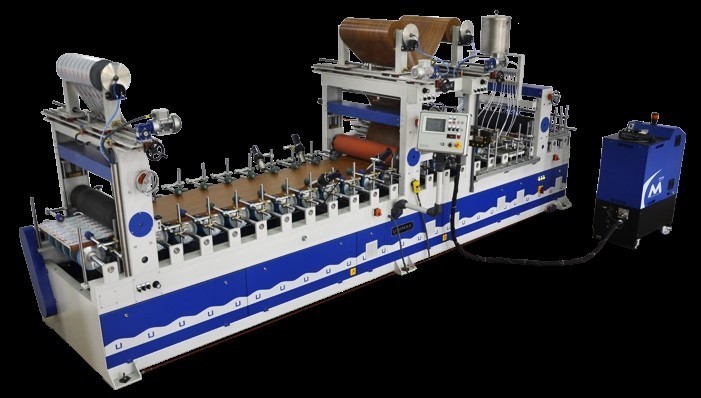

WB 85 / WB 110 / WB 130

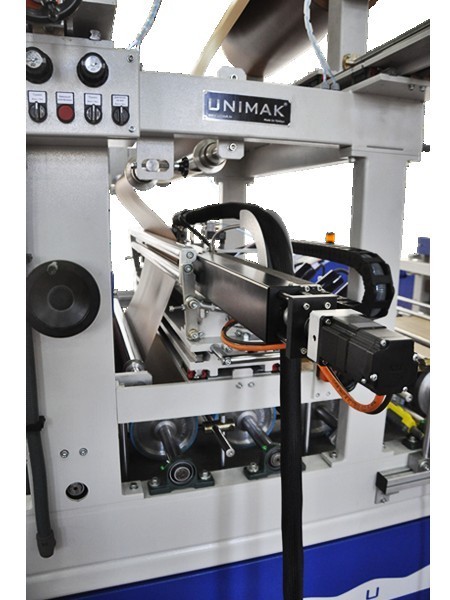

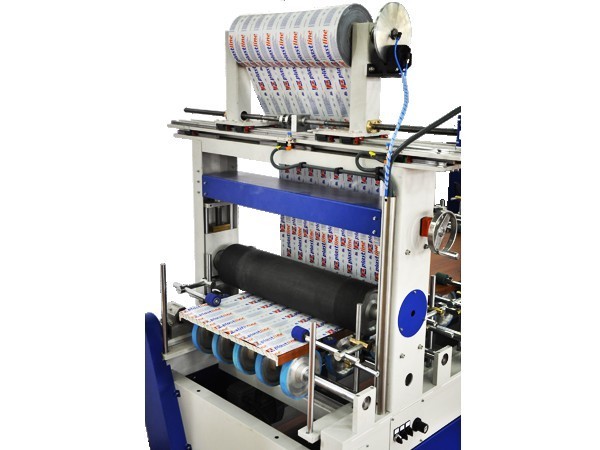

Machine WB 85 / WB 110 / WB 130 has been designed for lamination and coating wide-dimension panels. The device is equipped with a blowing unit, primier station and revision UV lamp. Such configuration allows to wrap, PVC panels, window sills, wall panels and sandwich. The machine was created for covering with hot melt PUR glue, through a slot nozzle with a Valco Melton glue tank what allows to controll easily the amount of glue applied to the foil.
- Profile type profiles PVC, aluminium, wall panels and windowsill
- Foil type: PVC foils, acrylic, aluminium, ABS, HIGH GLOSS, P.P.
- Glue type: Polyurethane hotmelt ( PUR ) glue
- Machine speed: 10 - 30 m/min
- Foil width: 200 mm min., 1300 mm max.
- Panel width: 200 mm min., 1300 mm max.
- Working width: 8500 / 1100 /1300 mm
- Panel height: 125 mm max.
- Machine lenght: 6000 – 13 000 mm
- Total power: 28- 48 kW
- Weight: 3000 - 5000 kg.
