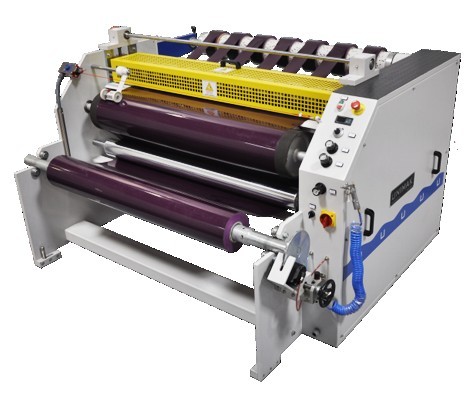

SM-700F / SM-1500F

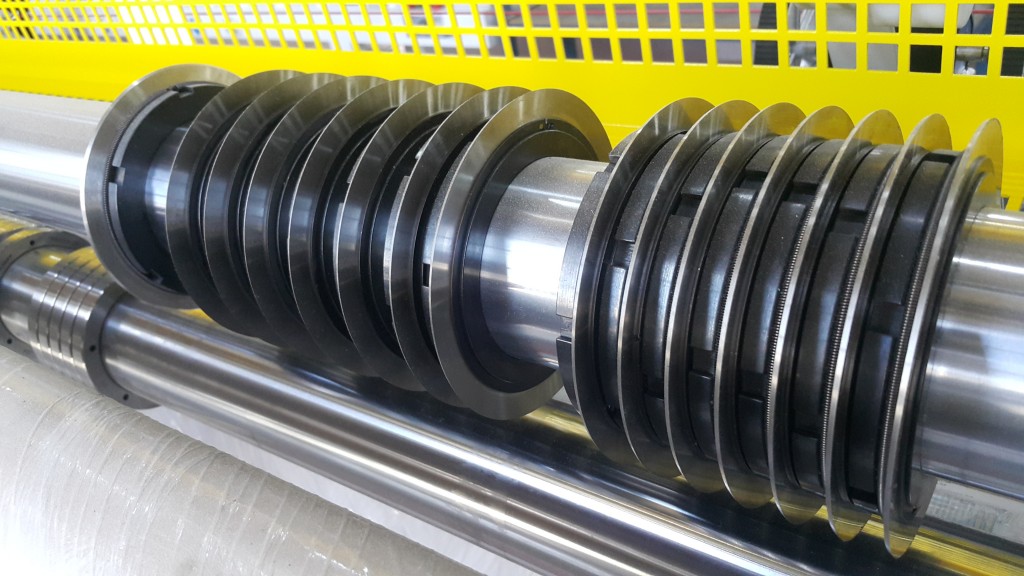

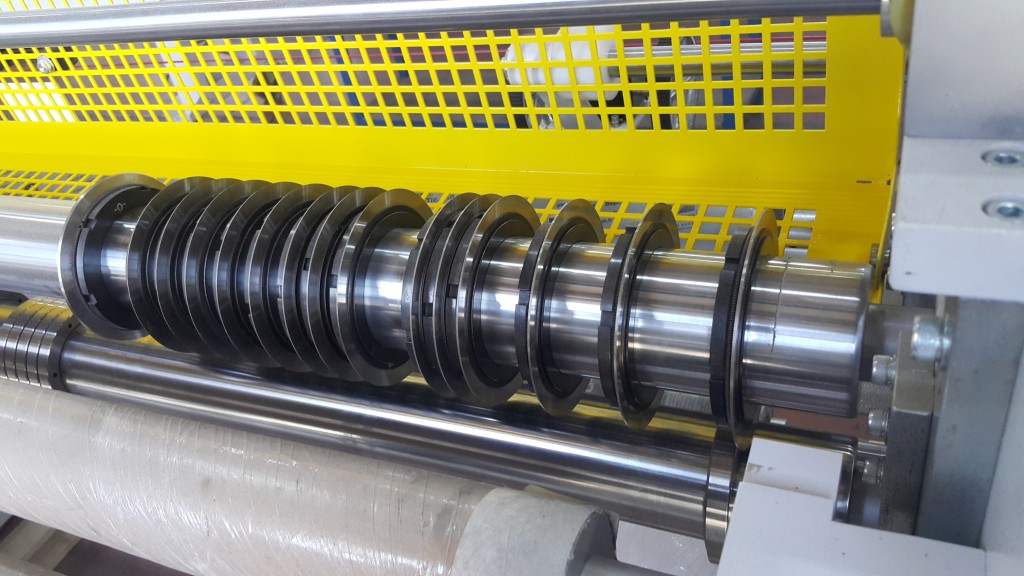

Slitting machine SM-700F / SM-1500F was created for cutting and rewinding PVC, Finish, P.P. foils, melamine and paper. For cutting are responsible top-bottom roll type knives and rewinding material is on frictional shafts equipped with special disks that maintain constant tension and prevent "drifting". With variable speed control usineg inwerter, maschine achieve high slitting quality



sm1500-f-(1)k9

  • Foil type  PVC, P.P., FINISH foil, paper, melamine
  • Foil thickness: 0,4 mm max.
  • Working width: 700 / 1500 /1650 mm
  • Quantity of roll type knives: 15 pc.
  • Machine lenght: 6000 – 13 000 mm
  • Total power: 2,2 - 3 kW
  • Weight: 1200 - 1360 kg.
