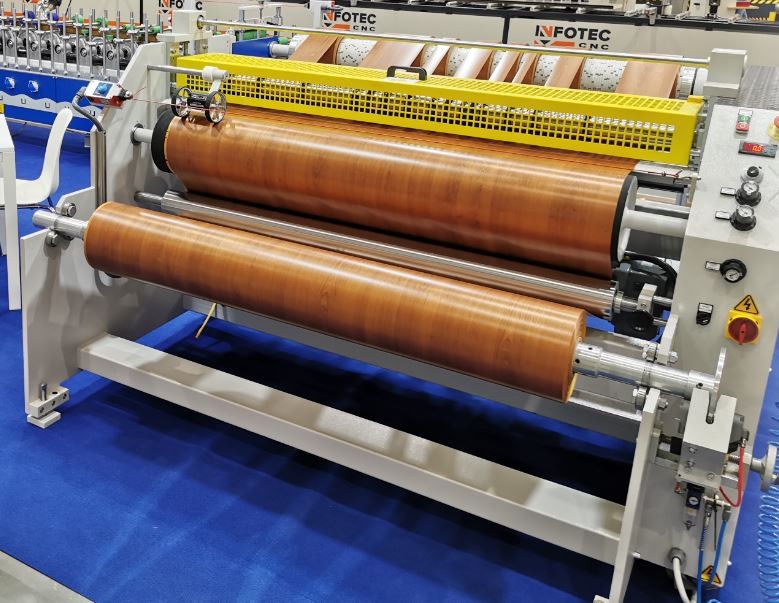

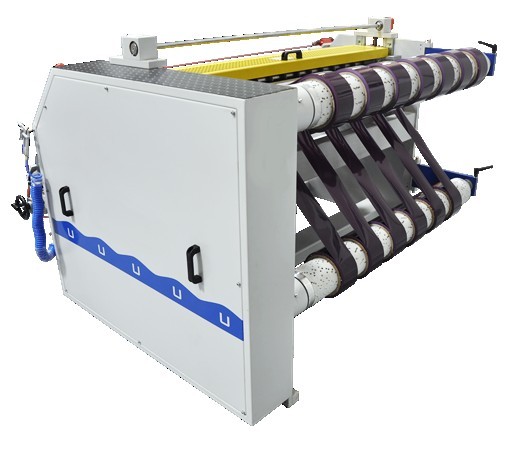

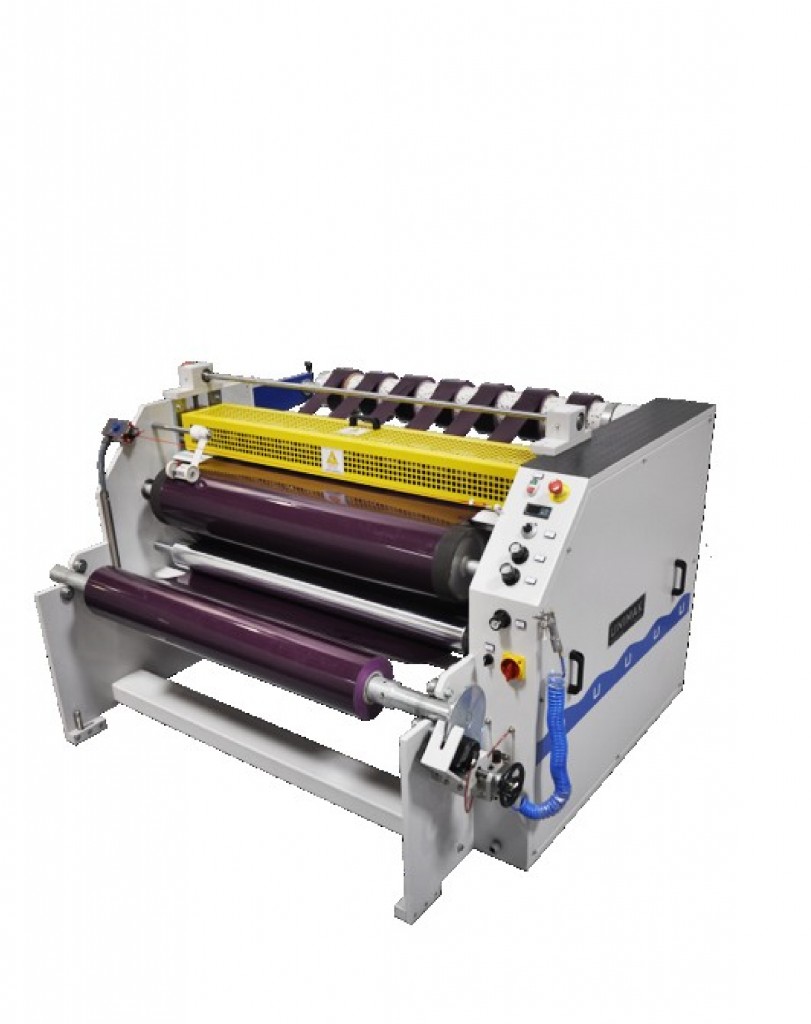

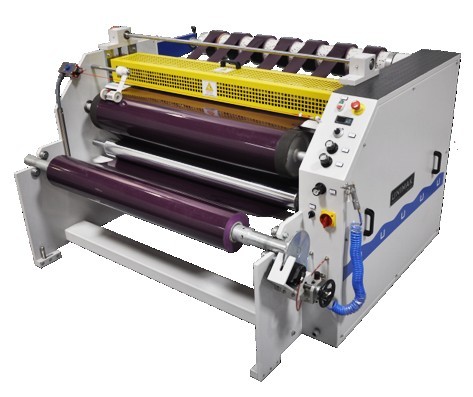

SM 700-F / SM 1500-F

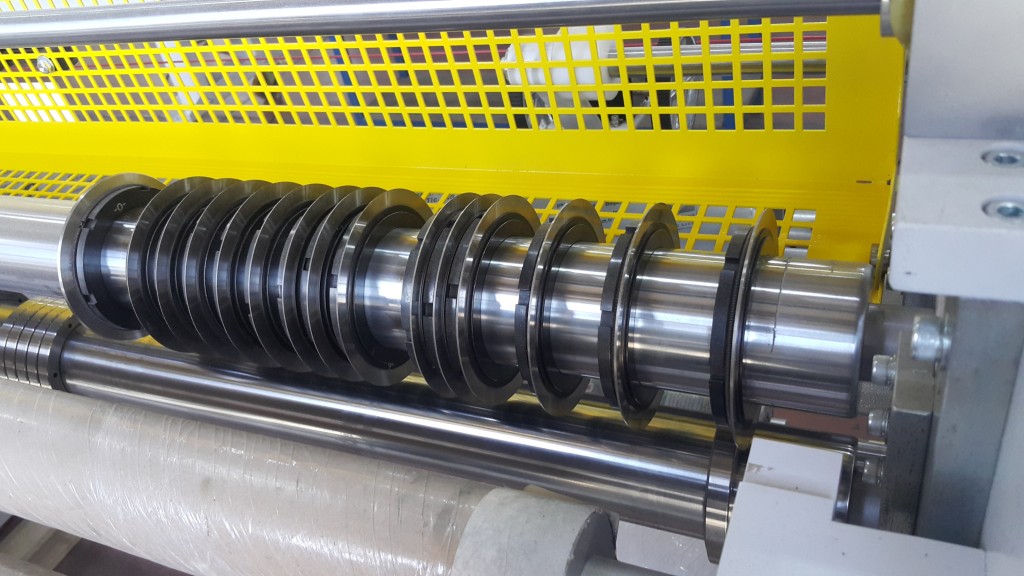

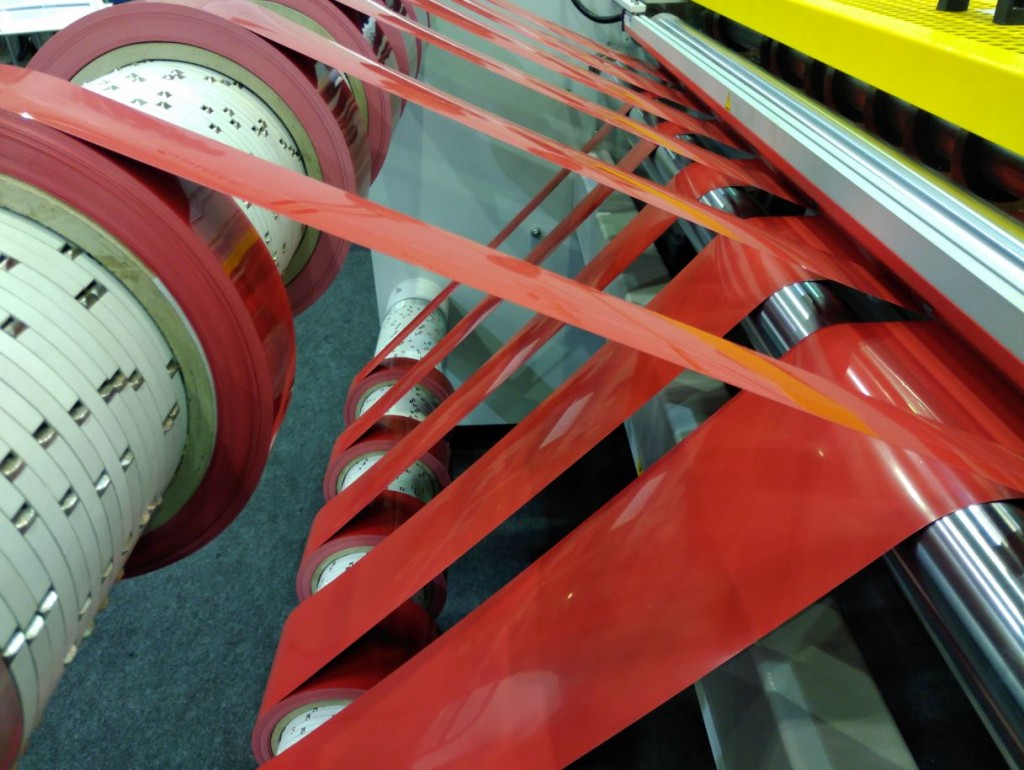

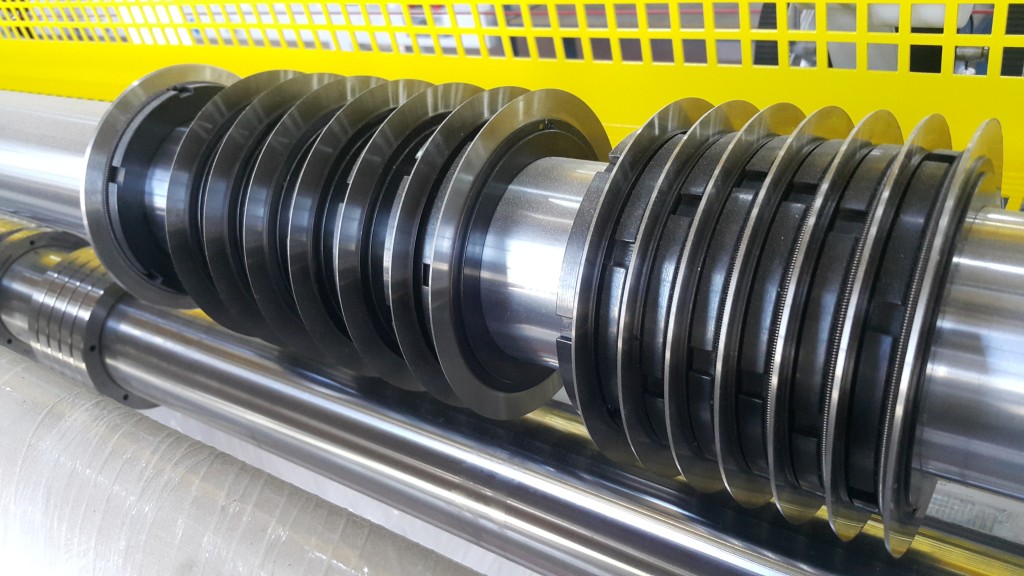

Slitting machine SM-700F / 1500F was created for cutting and rewinding PVC, Finish, P.P. foils, melamine and paper. Top-bottom roll type knives are responsible for cutting Rewinding material is on frictional shafts equipped with special disks that maintain constant tension what prevents "drifting". With variable speed control using inwerter, maschine achieve high slitting quality.



Bez tytułu

  • Foil type  PVC, P.P., FINISH foil, paper, melamine
  • Foil thickness: 0,4 mm max.
  • Working width: 700 / 1500 /1650 mm
  • Quantity of roll type knives: 15 pc.
  • Machine lenght: 6000 – 13 000 mm
  • Total power: 2,2 - 3 kW
  • Weight: 1200 - 1360 kg.
