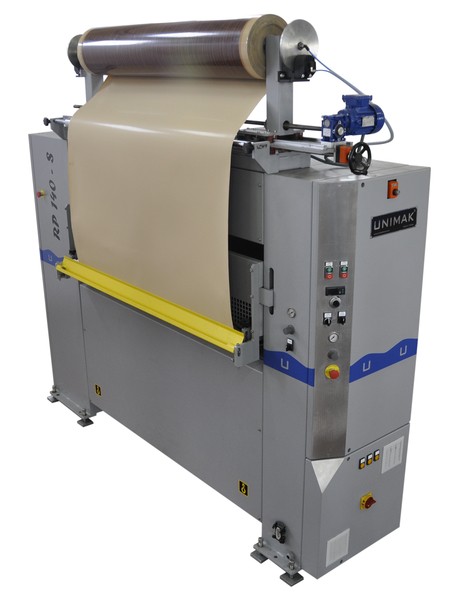

RP 140-S
RP 140-S is a press station with a single pressing roller and foil unwinding station. The device has been designed to work in production line for feed and press foil on panel with previously applied adhesive.
- Panel width: 250 – 1320 mm
- Foil width: 250 – 1320 mm
- Panel thickness: 12 – 60 mm ( option 3 mm min. )
- Foil roll diameter: 600 mm Max.
- Working speed: 10 – 20 m/min
- Working height: 900 mm
- Pess roll diameter: Ø 300 PVC covered
- Transport roll diameter: ø 400 Steel
