PW2 35 W6-PA

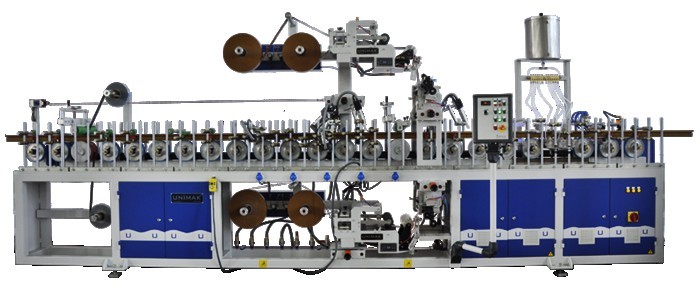

Profile wrapping machine PW2 35 W6-PA has been designed to cover two sides of profile profile Surface.Machine is equipped with a double blowing nozzle, primer station and revision UV lamp. With this configuration machine can wrapping, PVC profiles, aluminum profiles, wall panels and window sills . The machine was created for covering with polyurethane hotmelt (PUR) glue, through a slot nozzle with Valco Melton glue tank. This solution allows easily control the amount of glue applied to the foil

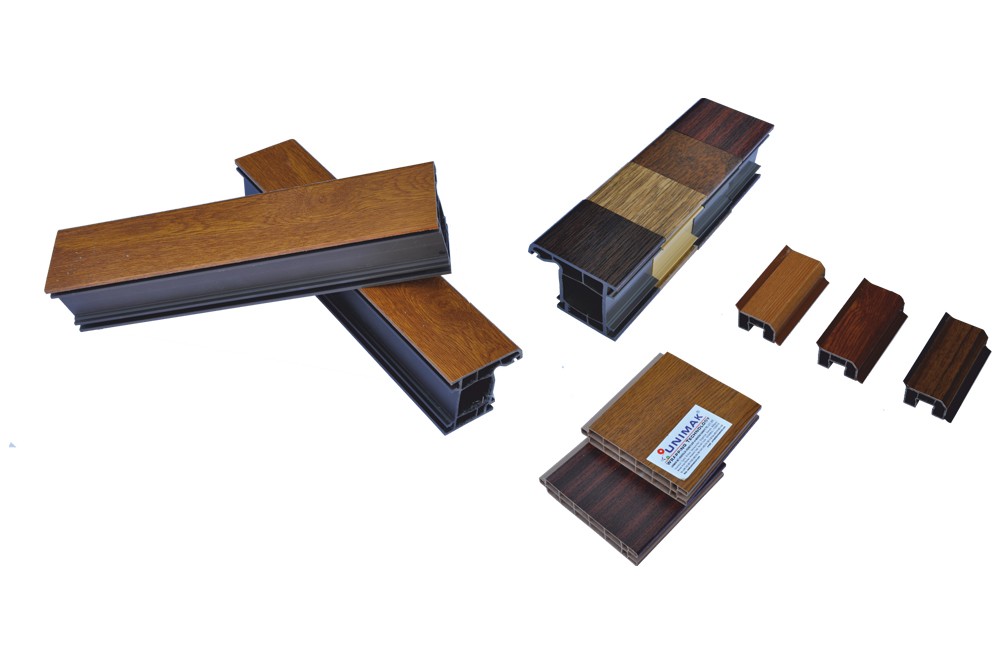

• Profile type profiles PVC, aluminium, wall panels and windowsill
• Foil type:  PVC foils,  acrylic, aluminium, ABS, HIGH GLOSS, P.P.
• Glue type: Polyurethane hotmelt ( PUR ) glue
• Machine speed: 10 - 40 m/min
• Foil width: 20-350 mm
• Profile width: 20-200 mm
• Profile height: 125 mm max.
• Machine lenght: 6000 mm
• Total power: 38  kW
• Weight: 2500 kg.
