PW 35 F6-PEC / PW 35 F7-PEC

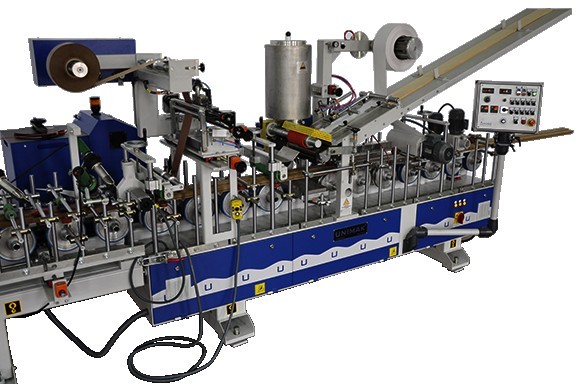

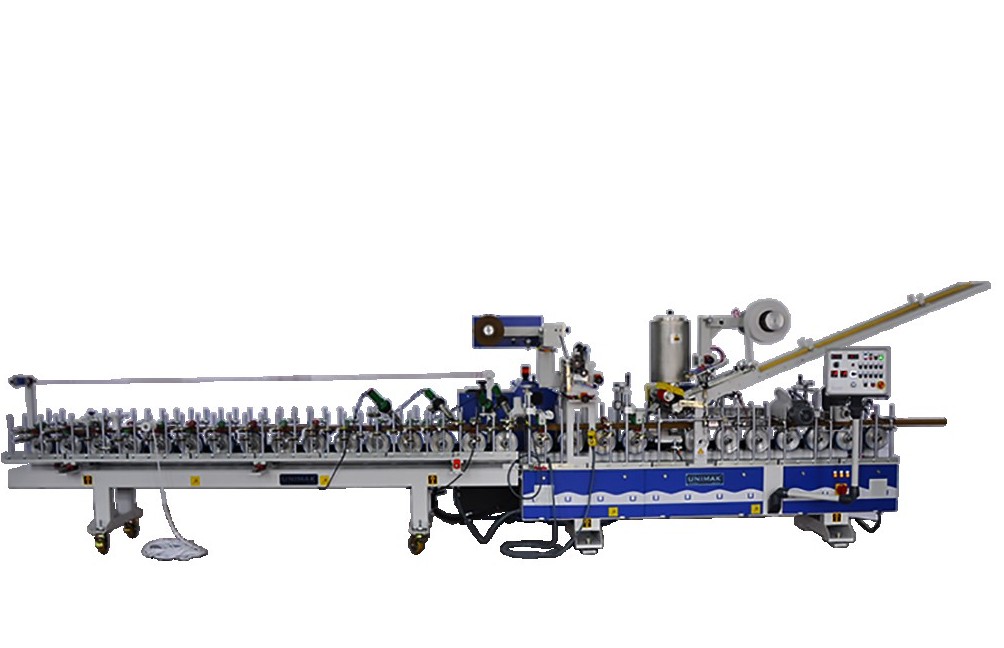

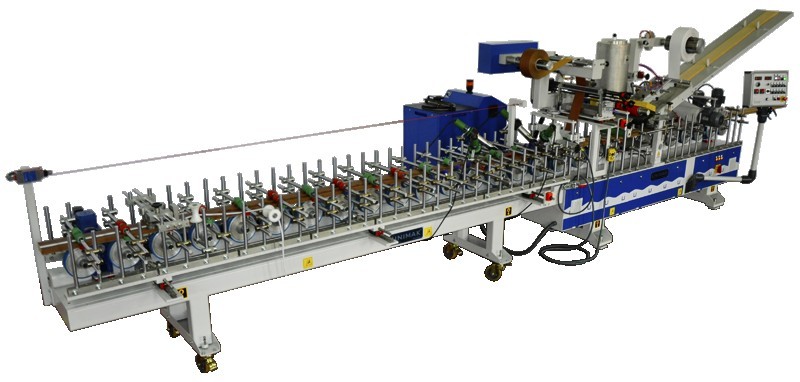

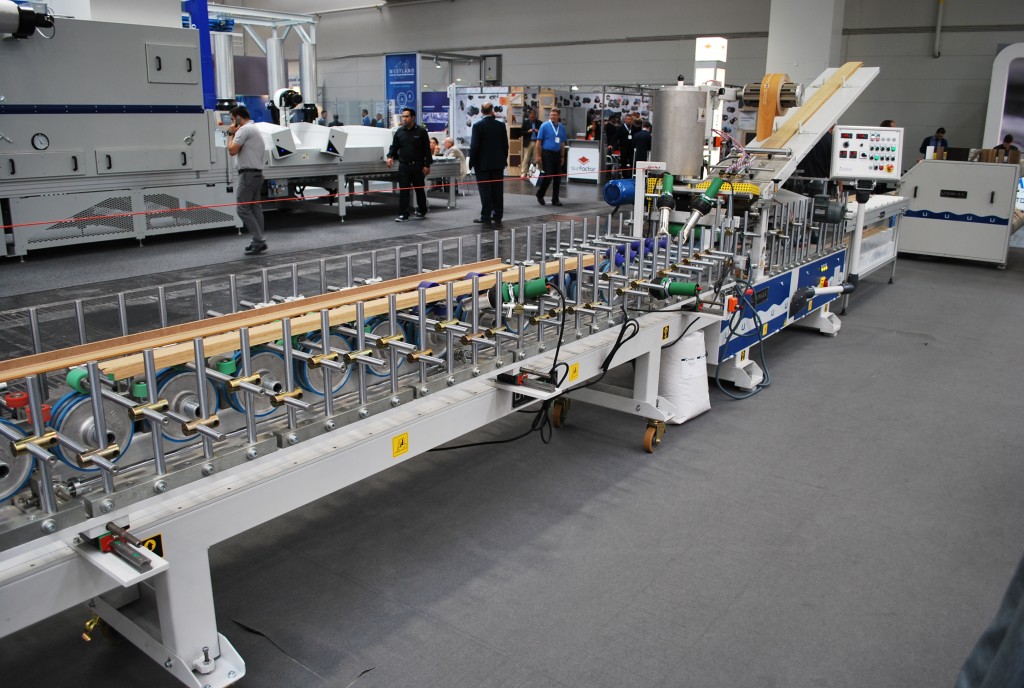

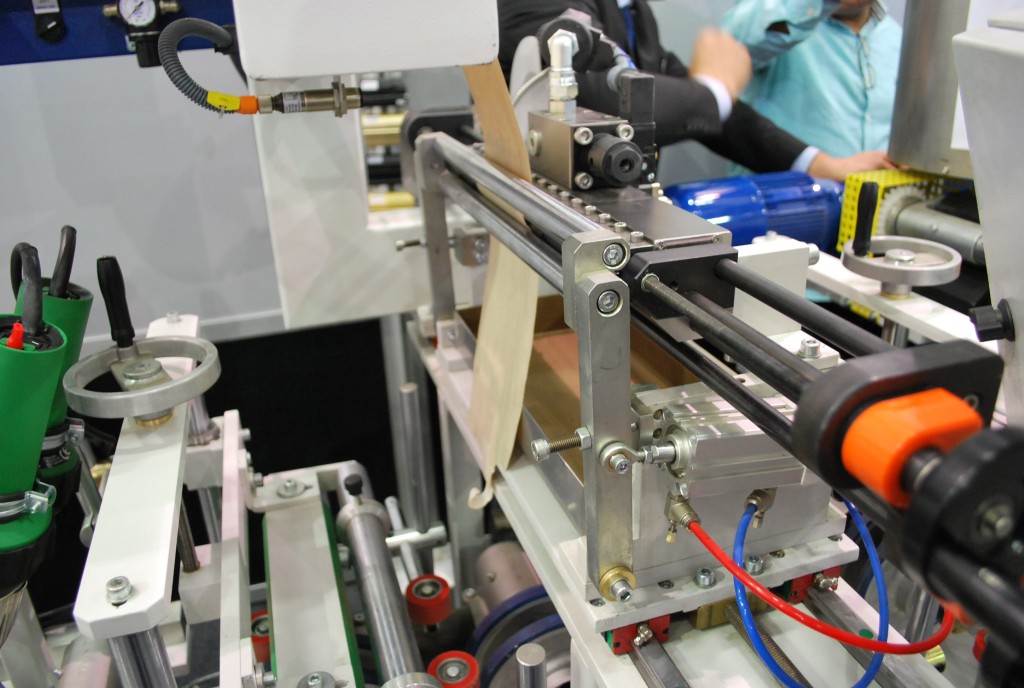

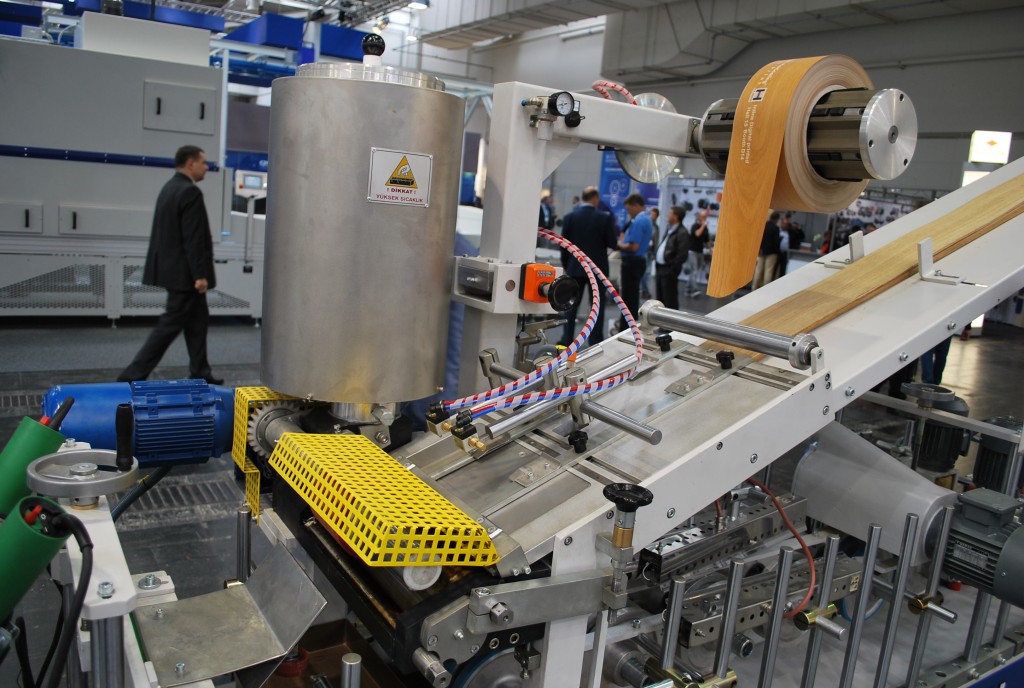

Profile wrapping PW 35 F6-PEC / PW 35 F7-PEC is a machine for wrapping wooden profiles, MDF, frames and casing. In machine applies two adhesive systems, first with Valco Maltion slot nozzle and second with a glue roller. With this solution, you can use the various glues and veneer materials. The device consists of a 3000mm monoblock, together with a cassette system allows you to replace the pressing zone without tools with frequent changes in the type of the profile to be glued.

• Profile type: wooden profiles, MDF, wall panels, frame and casing
• Foli type: FINISH foil, PVC, CPL, HIGH GLOSS, P.P. Veneer (rolled or sheet type)
• Glue type: hotmelt PUR / EVA / PO
• Wrapping speed: 10 - 60 m/min
• Foli width: 20-350 mm
• Profile width: 20-350 mm
• Profile height: 125 mm max.
• Maschine lenght: 6000-7000 mm
• Total power: 44  kW
• Maschine weight:  2200 - 2300 kg.
