PW 35 F55-EC / PW 35 F65-EC

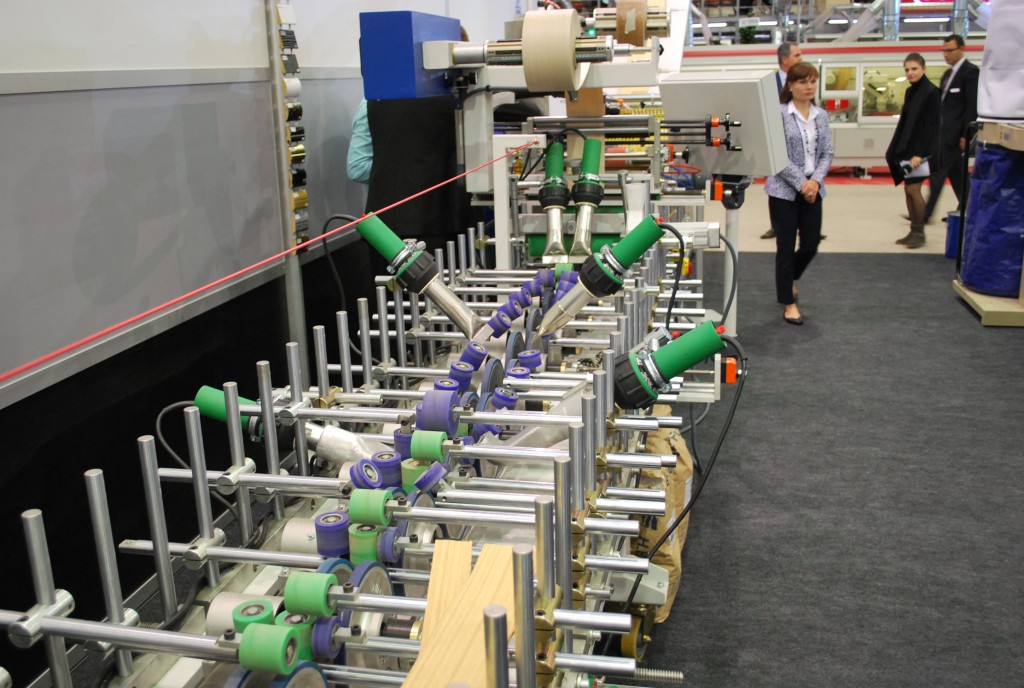

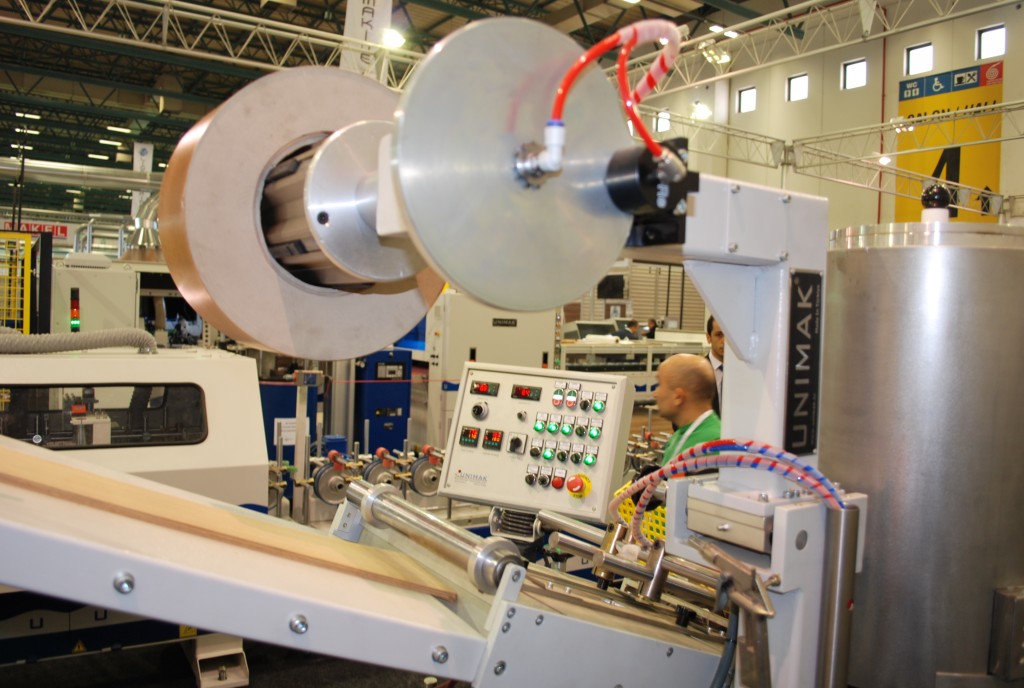

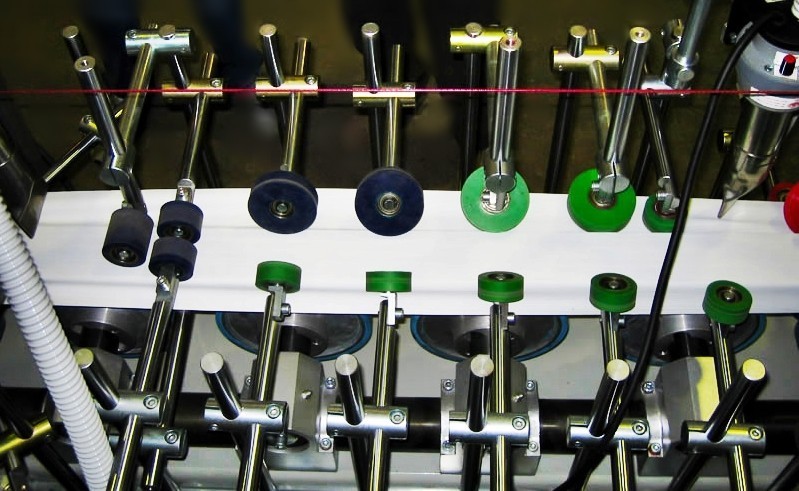

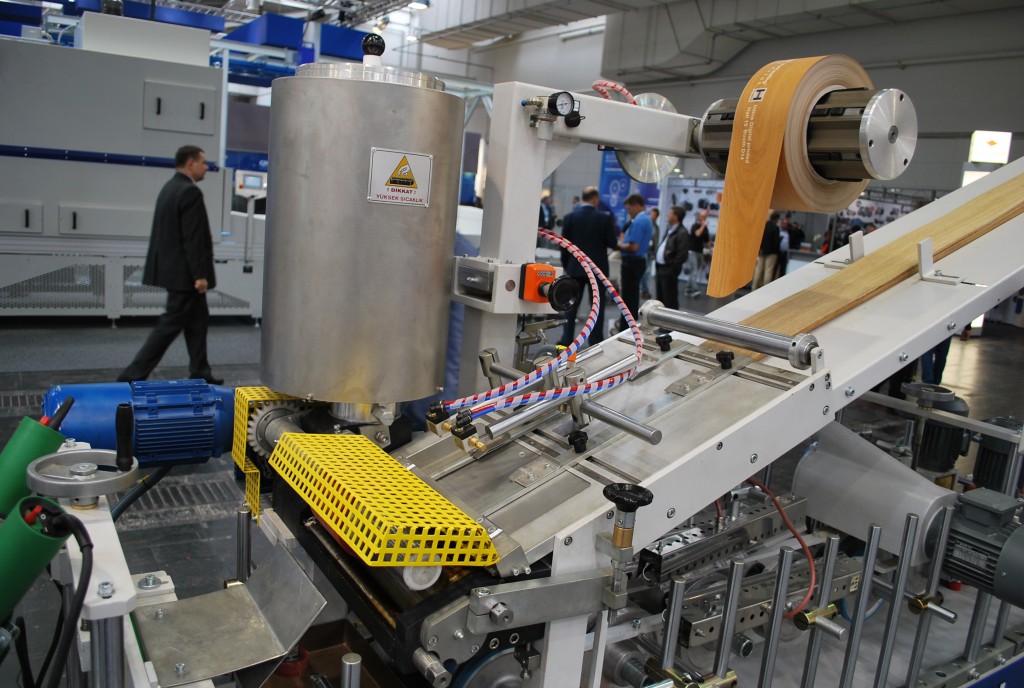

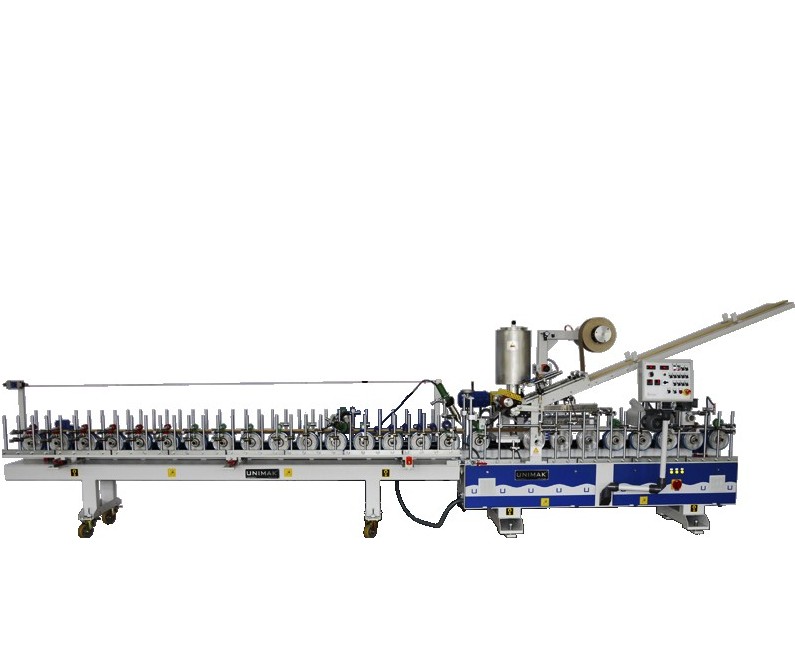

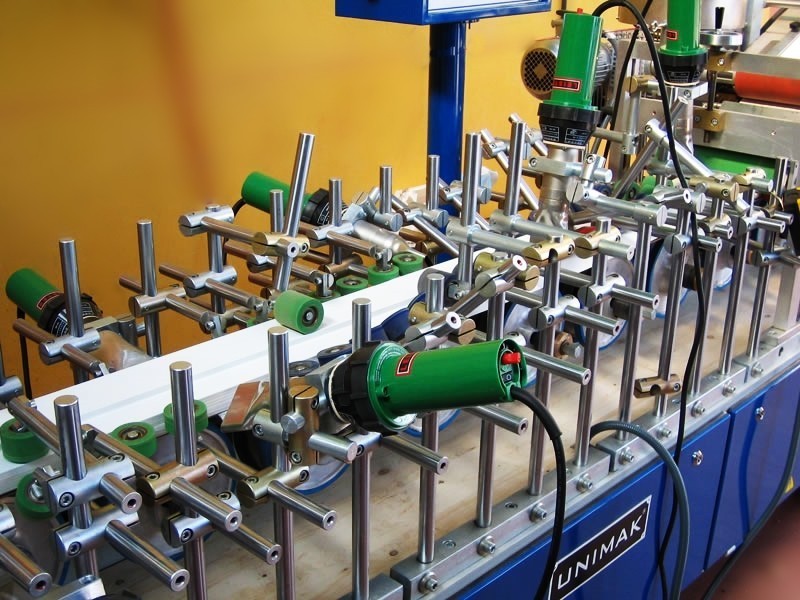

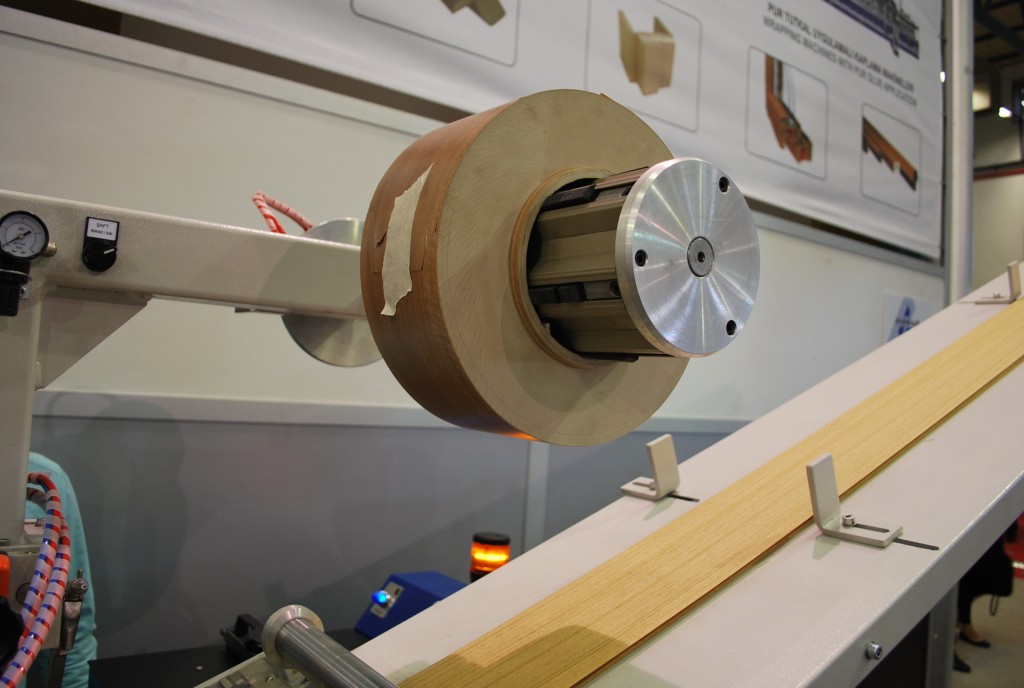

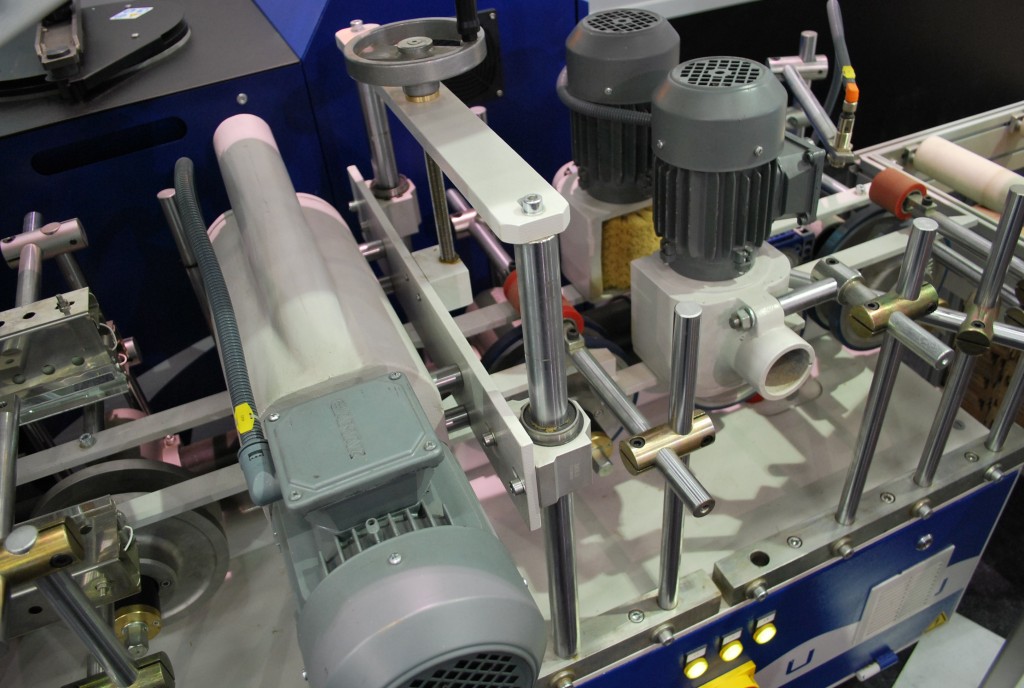

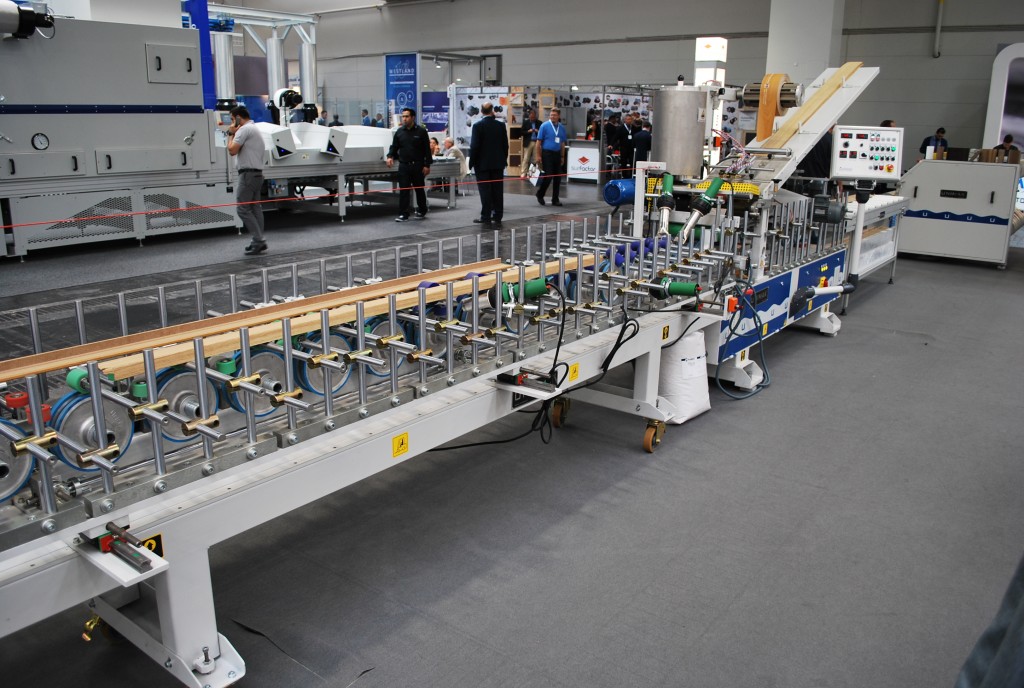

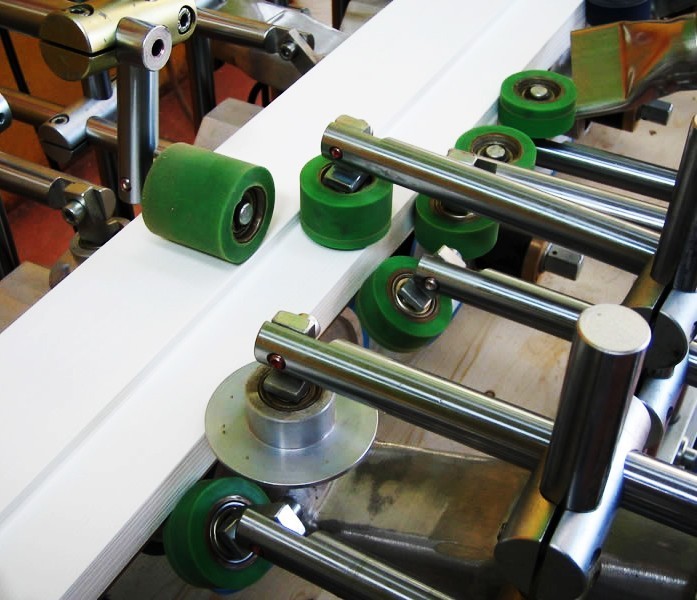

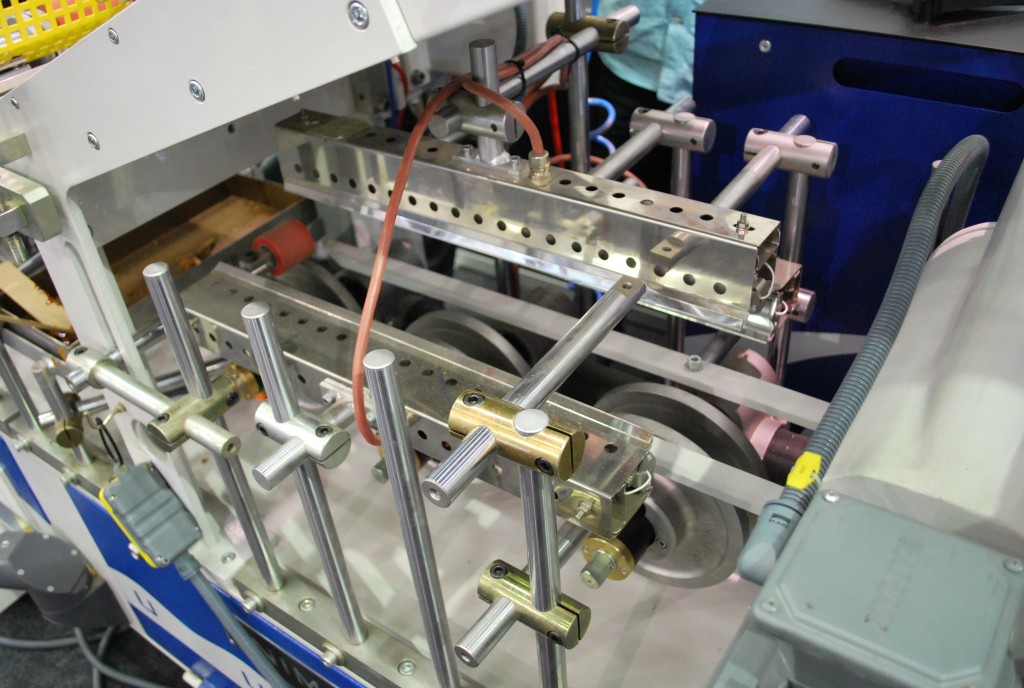

Profile wrapping PW 35 F55-E / PW 35 F65-EC is a machine for gluing wooden profile, MDF, frames and casing. The machine has been adapted for wrapping with hotmelt EVA or PO glue using adhesive roller with a 18l tank. With adhesive roller, we can glue materials such as paper, FINISH, CPL, P.P film. and veneer in a roll or sheet type, feeding from a specially prepared ramp. The device consists of 2500 mm monoblock length, together with the cassette system which allows to replace the pressing zone without tools with frequent changes in the type of the profile to be glued.

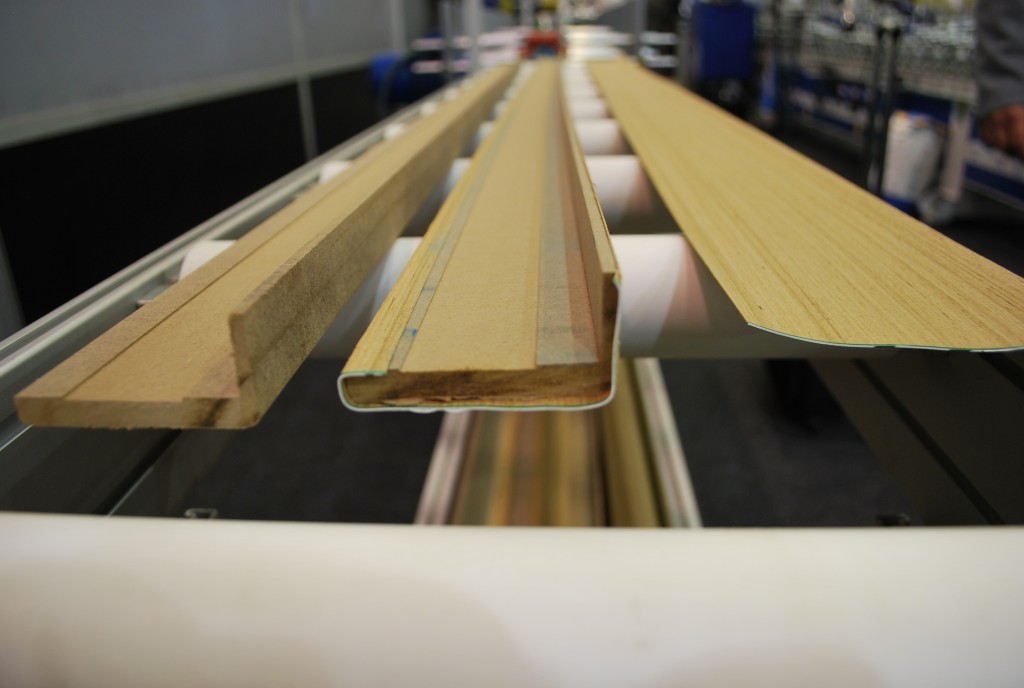

• Profile type: wooden profiles, MDF, wall panels, frame and casing
• Foli type: FINISH foil, CPL,  PP, Veener (rolled or sheet type)
• Glue type: hotmelt  EVA / PO
• Wrapping speed: 10 - 45 m/min
• Foli width: 20-350 mm
• Profile width: 20-350 mm
• Profile height: 125 mm max.
• Maschine lenght: 5500-6500 mm
• Total power: 28 - 38  kW
• Maschine weight: 1962 kg.
