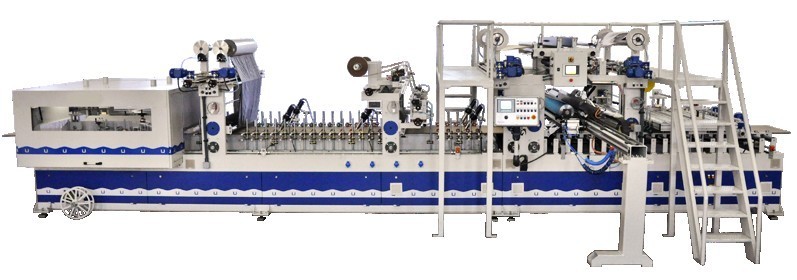

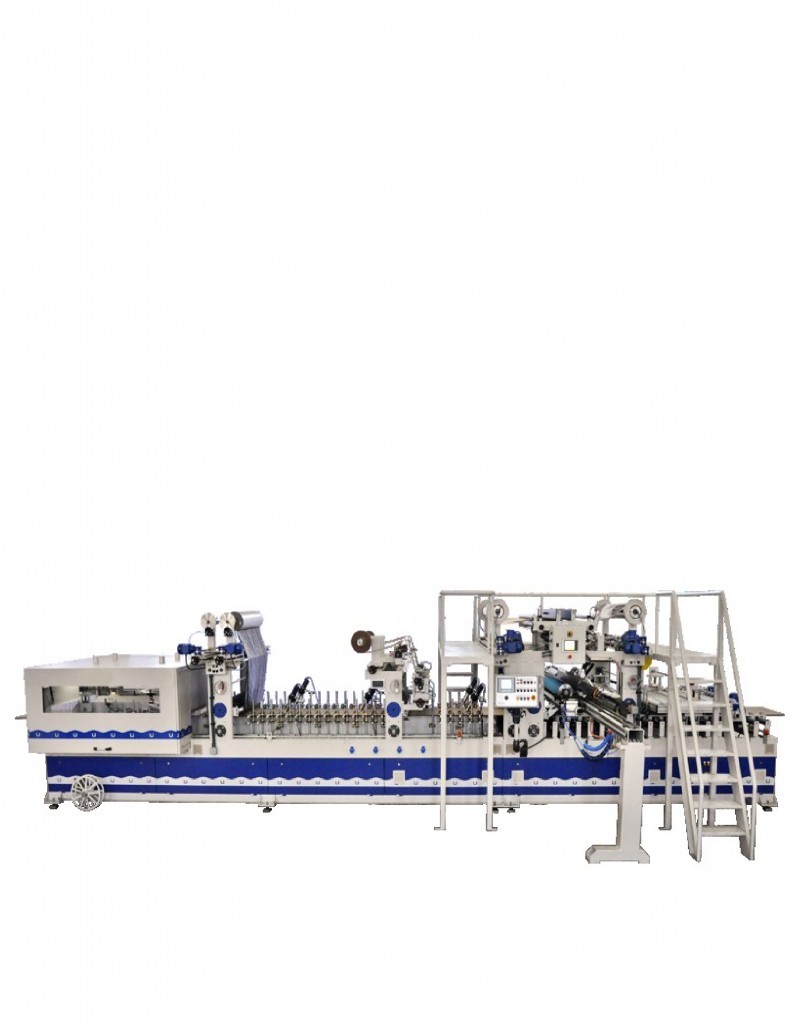

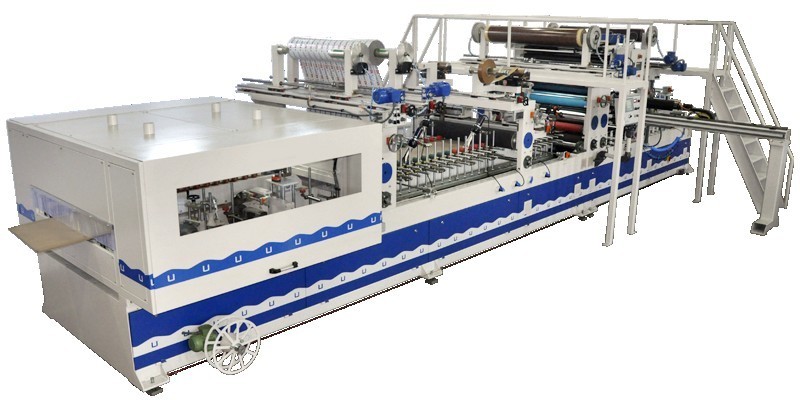

PL 85 / PL 110 / PL 130

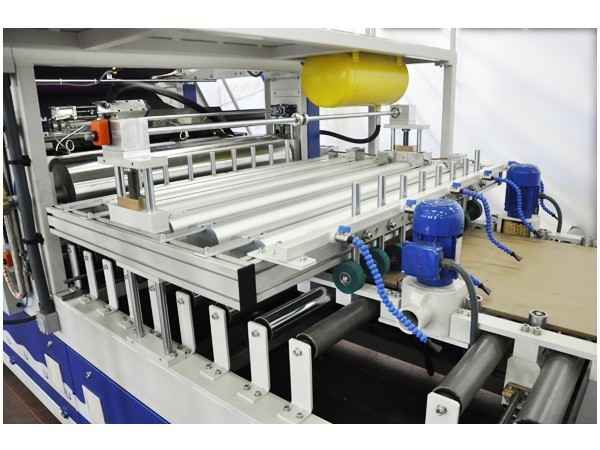

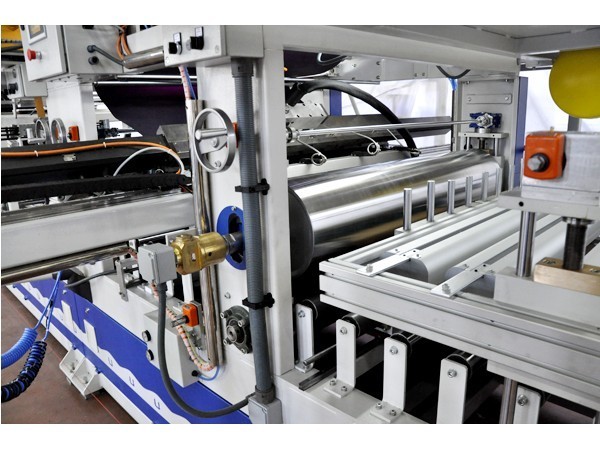

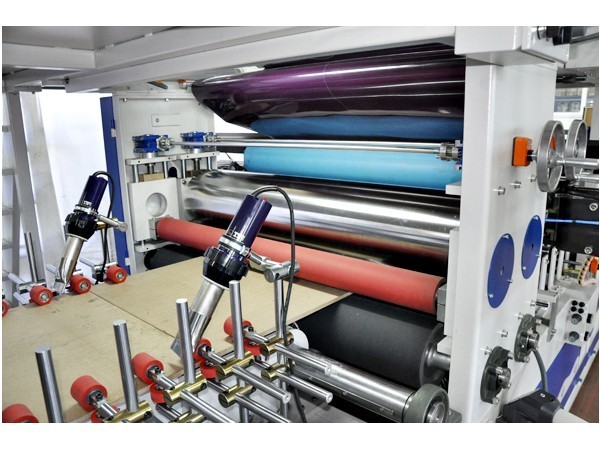

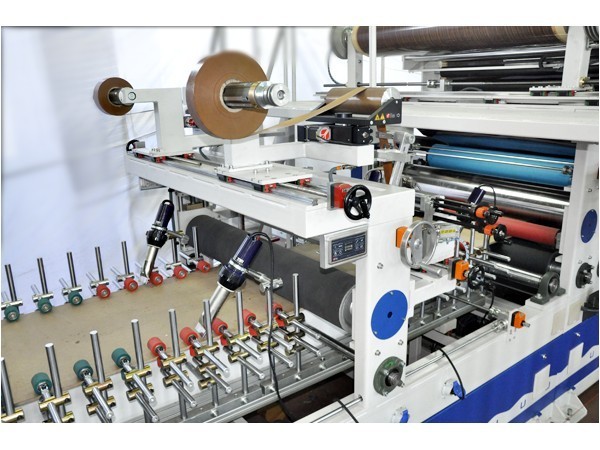

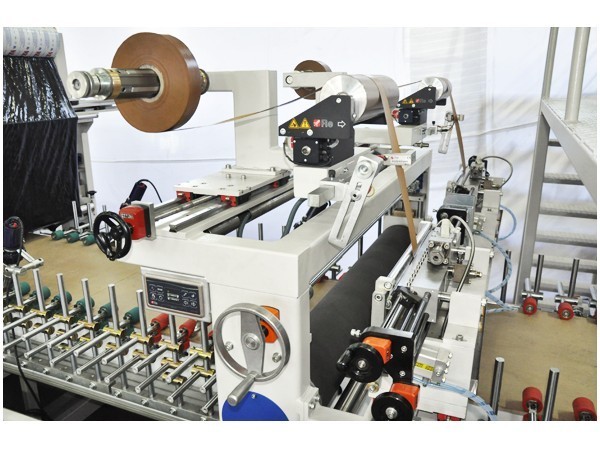

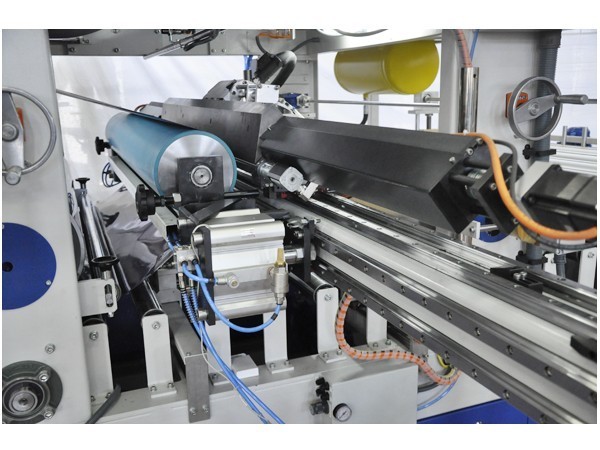

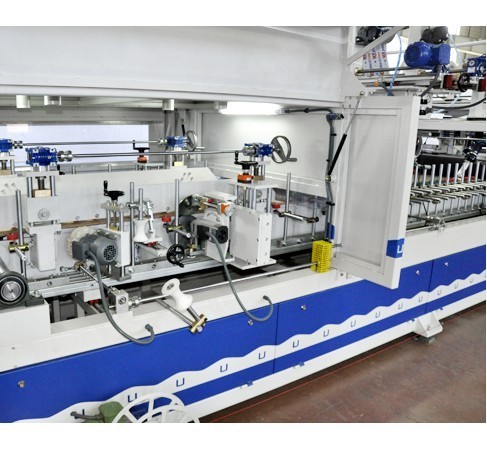

Machine PL 85 / PL 110 / PL 130 has been designed for laminating and wrapping 2D panels of wide dimensions, such as wooden and MDF panels, chipboards, wall and furniture panels, with various types of decorative foil. The gluing process using adhesive tank Valco Melton with slot nozzle which is additionally telescopic for easy access for service maintenance. Glueing through slot nozzle allows easily control the amount of adhesive applied on the foil.

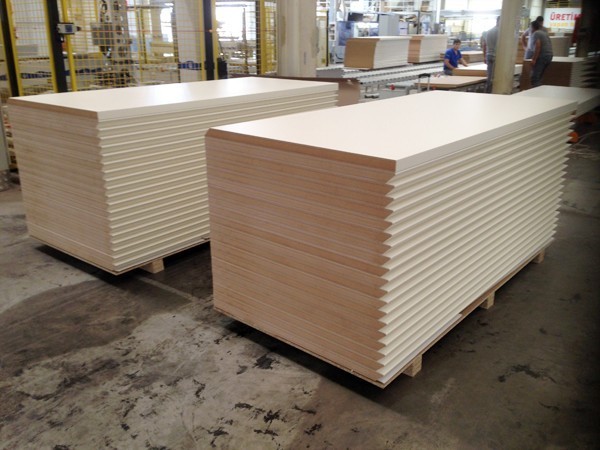

- Panel type: wooden profiles, MDF, wall panels, furniture panels, chipboard
- Foil type: FINISH foil, PVC, CPL, HIGH GLOSS, P.P.
- Glue type: polyurethane hotmelt (PUR)
- Wrapping speed: 10 - 25 m/min
- Foli width: 550 – 850 - 1300 mm
- Panel width: 550 – 850 - 1300 mm
- Panel thickness: 3-60 mm
- Maschine lenght: 6000 - 13000 mm
- Working height: 900 mm
- Total power: 58 kW
- Maschine weight: 3000 - 8060 kg.
