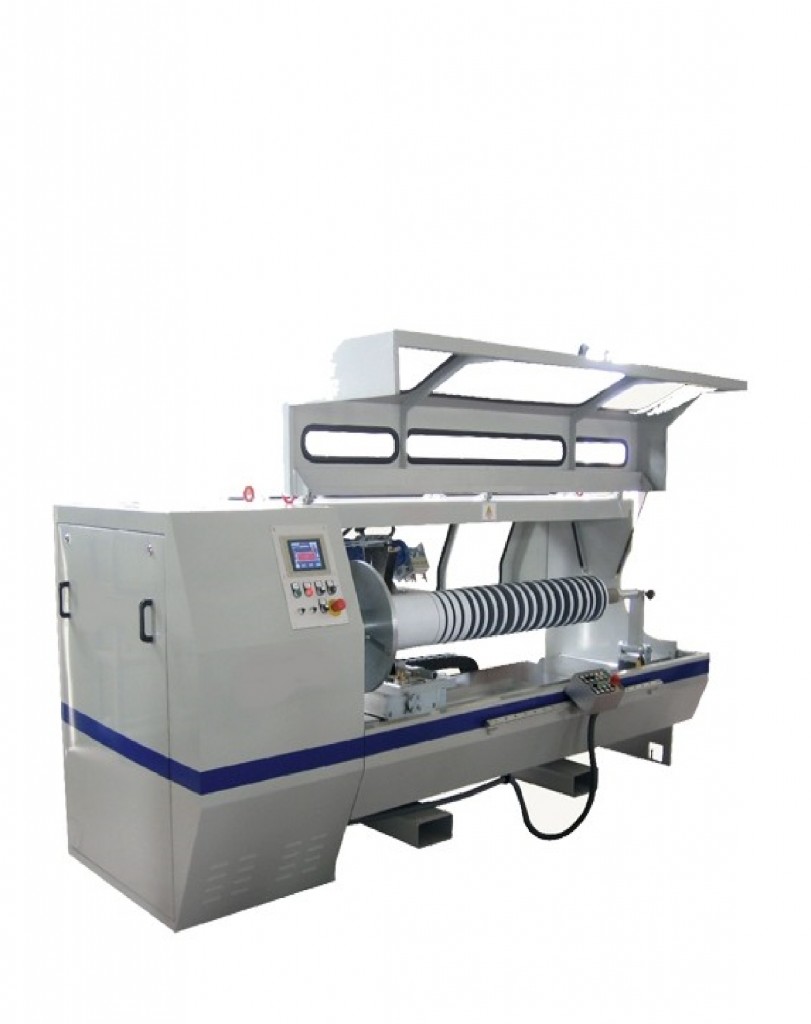

LS-1600

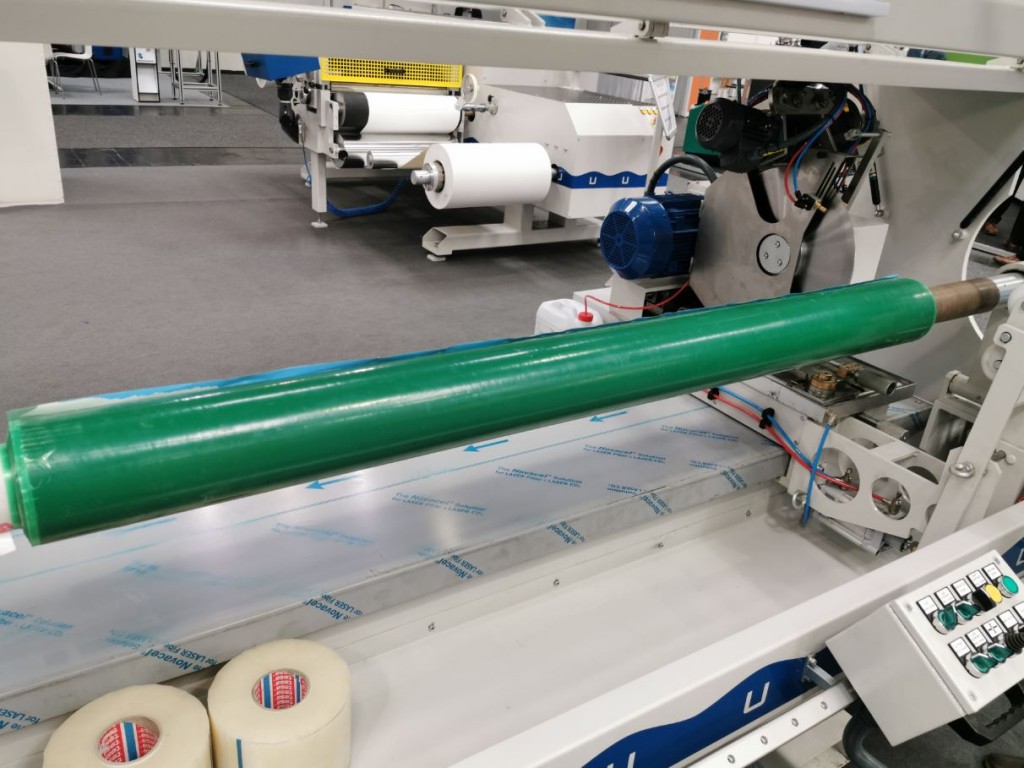

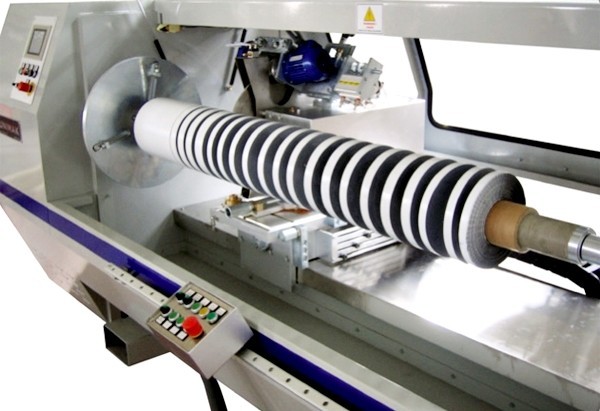

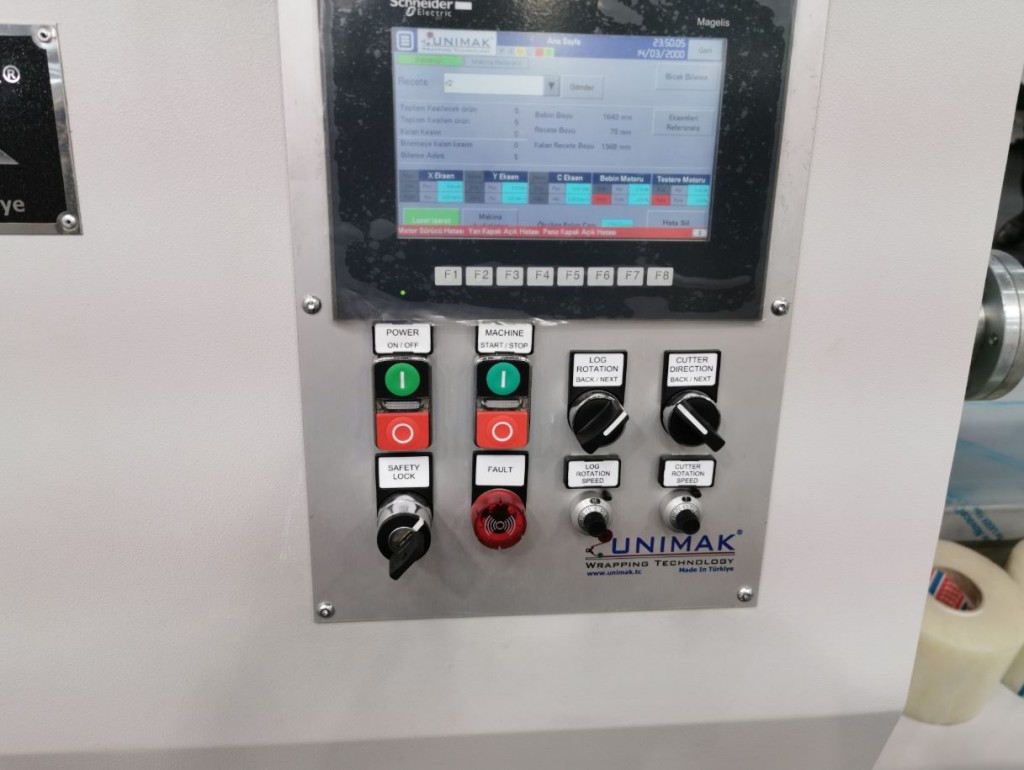

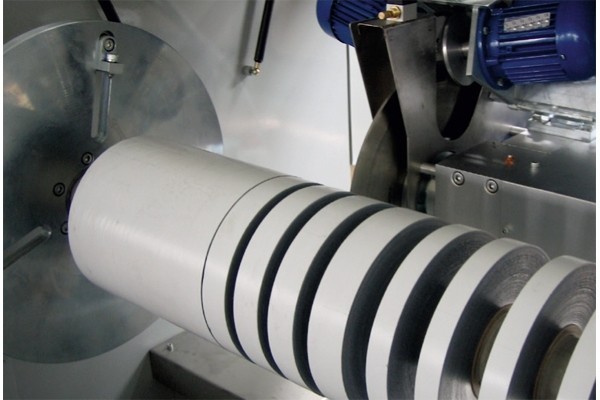

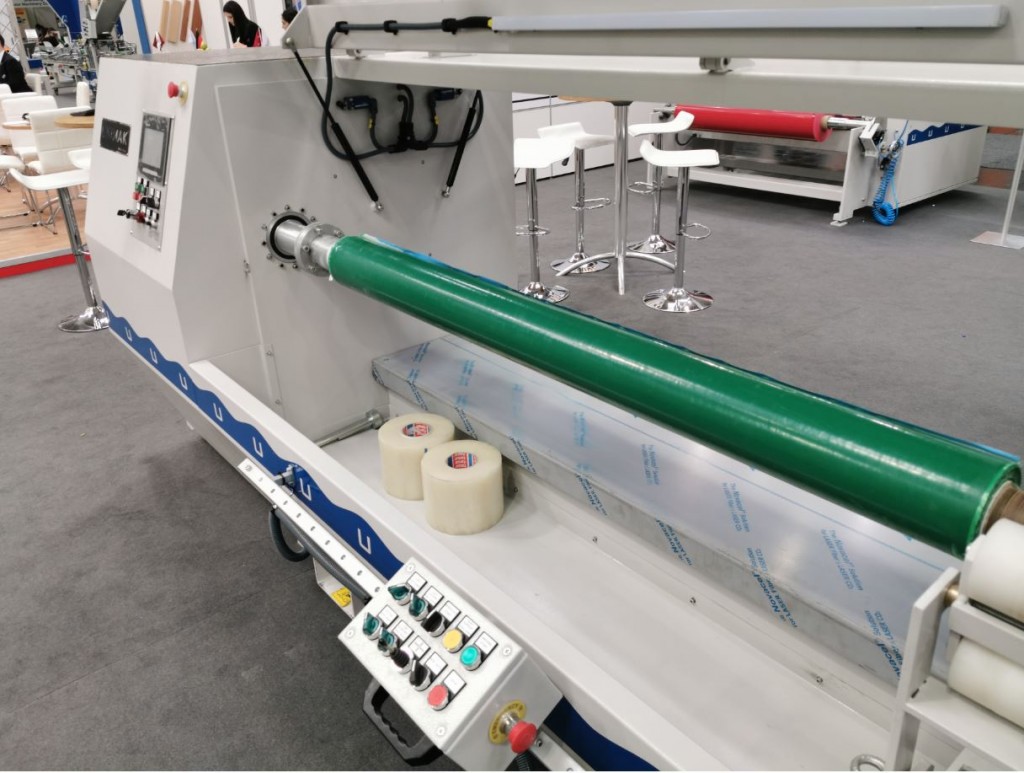

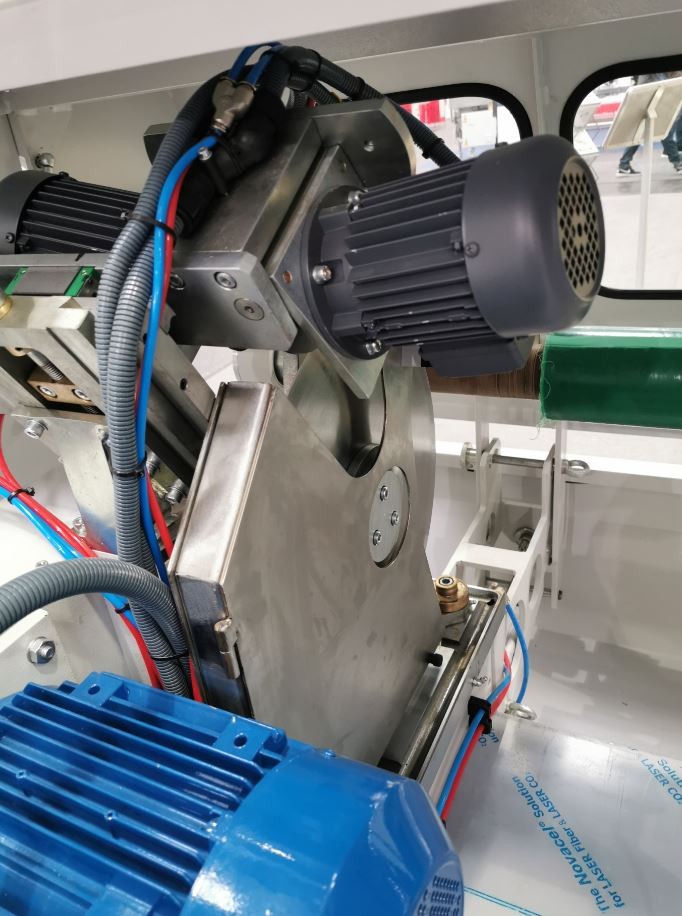

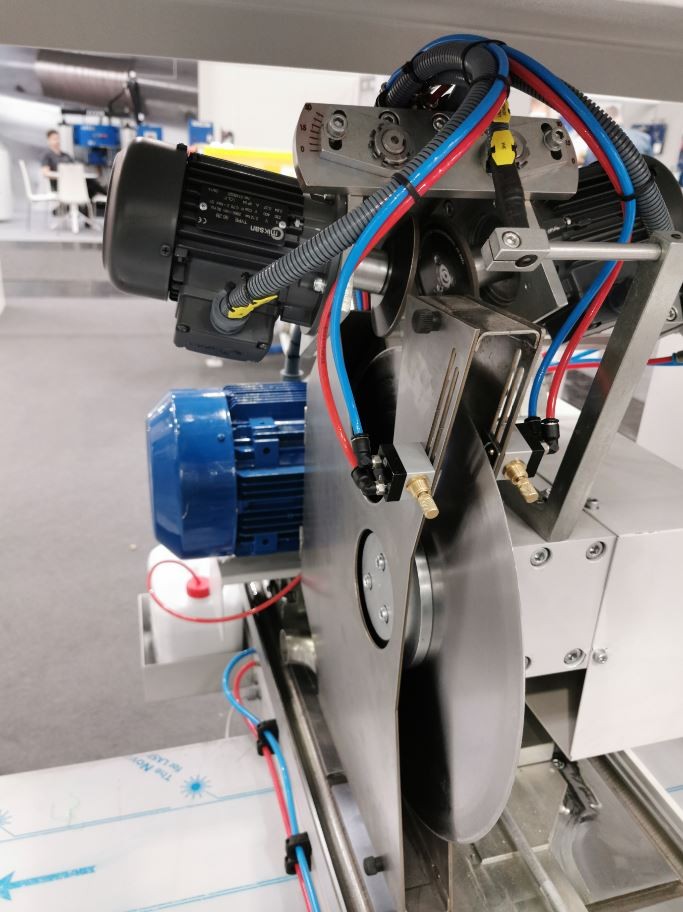

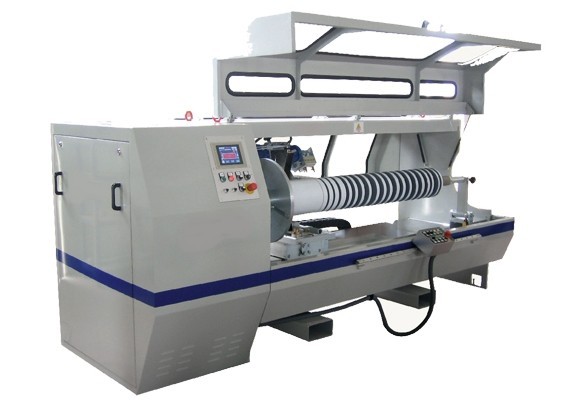

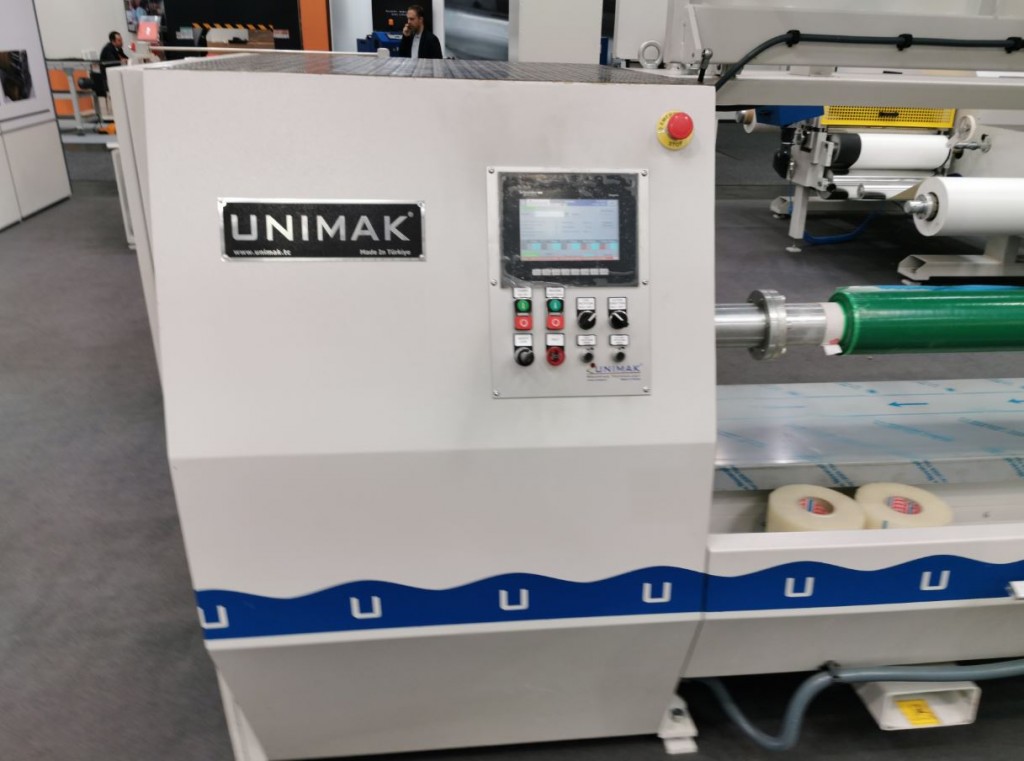

Machine LS-1600 has been designed for cutting various types of protective tapes. Cutting is done through a toothless saw blade, which results chipless and without waste cuts. The cutting unit moves on servo motors and is digitally controlled in three axes. An additional solution that the machine has is an automatic saw blade sharpener on two engines and water cooling. The whole is controlled from the color touch screen.

autoxautomAUTOcFFFFFF

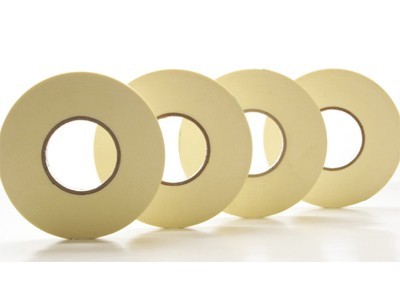

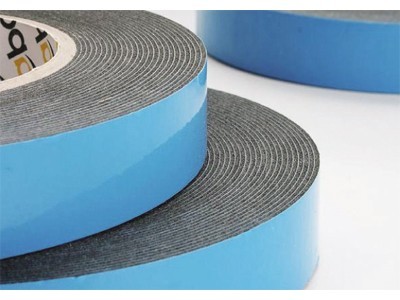

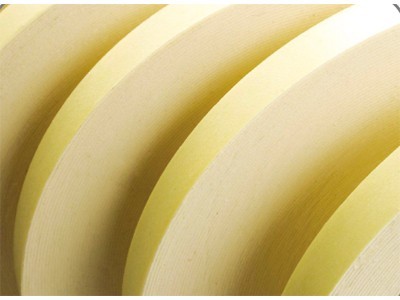

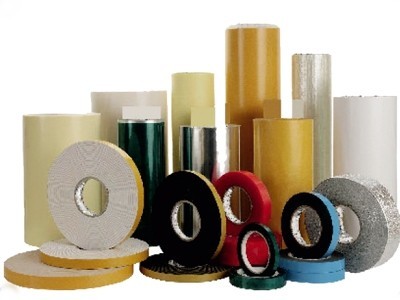

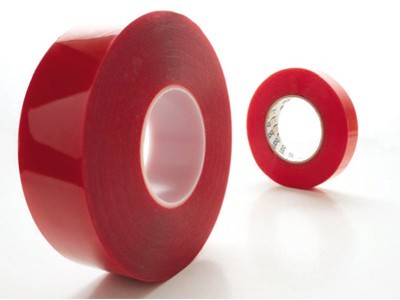

  • Cuttable materials: Surface protection tapes, sponge, foam, maskingdouble sided adhesive,cloth, butyl, poliester, glass fiber tapes
  • Roll diameter: 400 mm
  • Roll lenght: 1600 mm max.
  • Slitting width: 3 mm
  • Blade speed: : 300 rpm (max.) adjustable
  • Log rotation speed: 100 rpm ( max. ) adjustable
  • Total power: 12 kW
  • Weight: 1680 kg.
