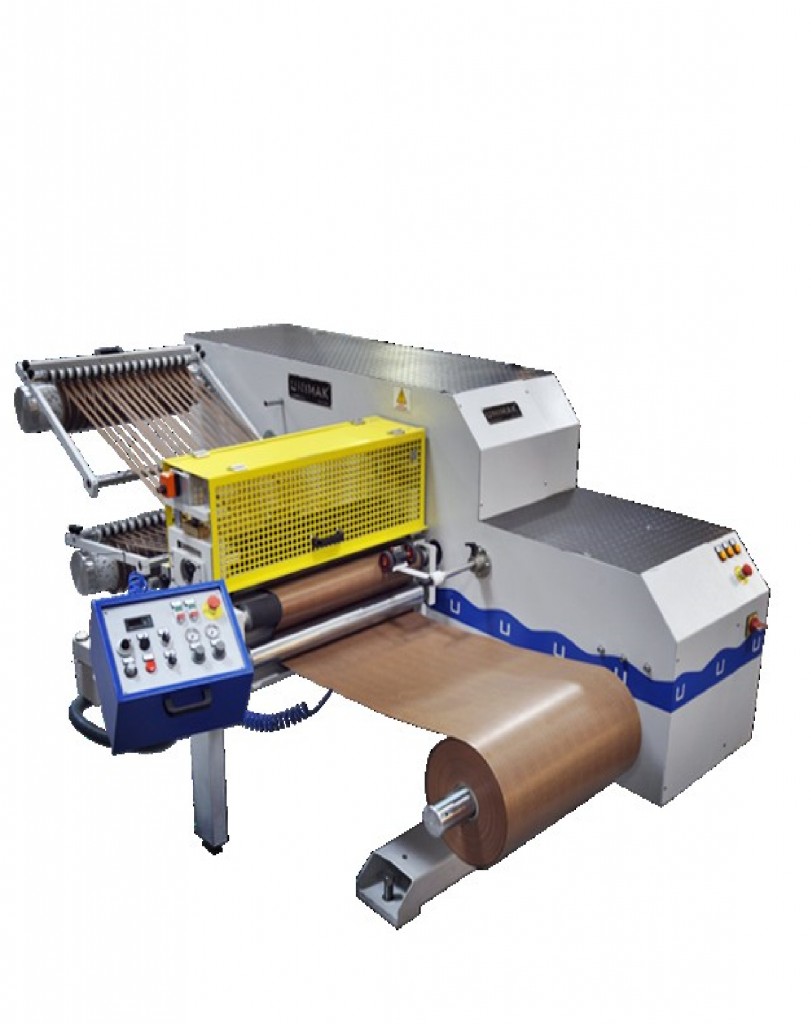

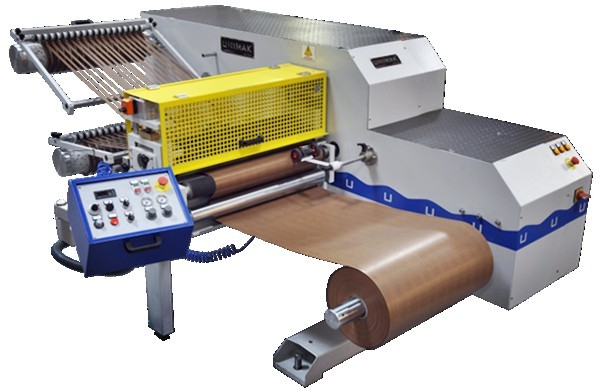

ESM 700-F

Slitting machine ESM 700-F is a device for cutting and rewinding edge band. The material that can be rewind is paper, ABS, P.P. and aluminum. For cutting are responsible top-bottom roll type knives and rewinding material is on frictional shafts equipped with special disks that maintain constant tension and prevent "drifting". With variable speed control usineg inverter, maschine achieve high slitting quality

autoxautomAUTOcFFFFFF

  • Cuttable materials  PVC, P.P., ABS, aluminium and paper
  • Working speed: up to 100 m/min
  • Foil thickness: 2 mm max.
  • Working width: 350 / 700  mm
  • Quantity of knives: 34 pcs.
  • Total power: 6 kW
  • Weight: 1610 kg.
