C2-130 HBD / C3-130 HBD

Panel width: Min 250 mm – Max 1350 mm
Panel lenght: 6000 - 13000 mm
Panel thickness: Min 12 mm - Max 60 mm (opcja; Min 3 mm)
Working height: 900 mm
Lenght: 2000 / 3000 mm.
Total power: 0,55 kW

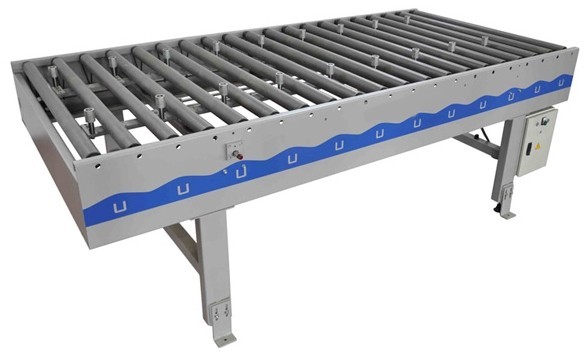

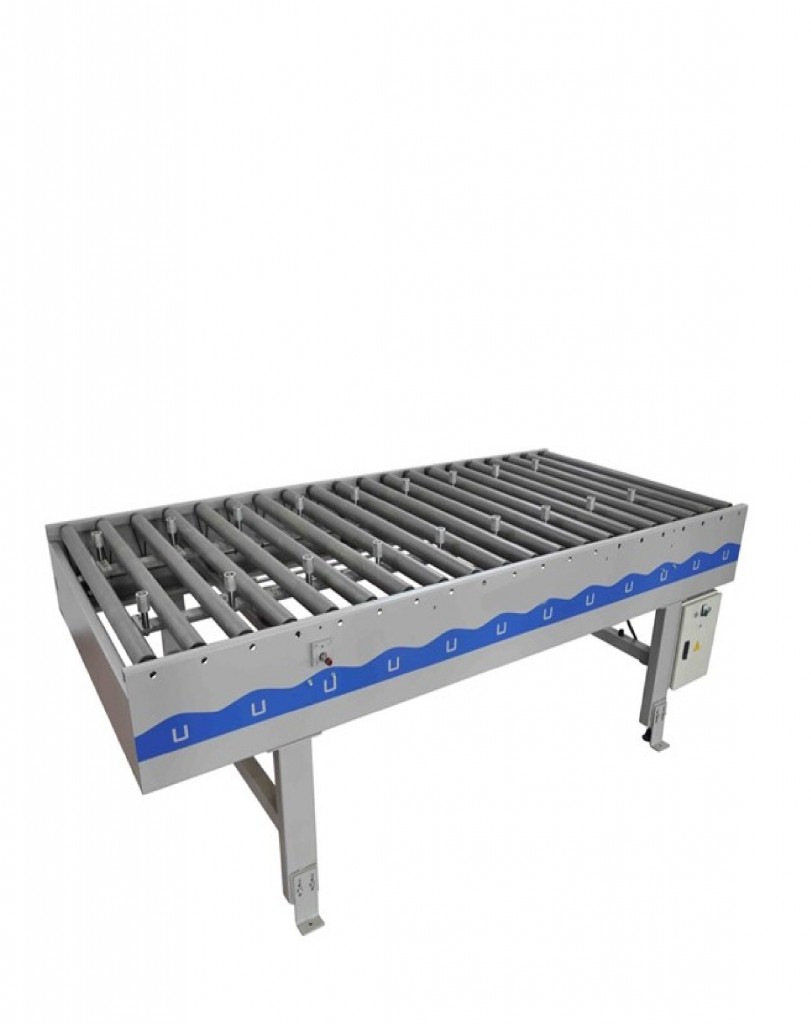

Conveyor C2-130 HBD / C3-130 HBD with driven rollers coated 3mm PVC material. It is possible to supply panels from 250 mm up to 1300 mm width with feeding conveyor. Width can be easily adjusted by collapsible panel guide on conveyor.
