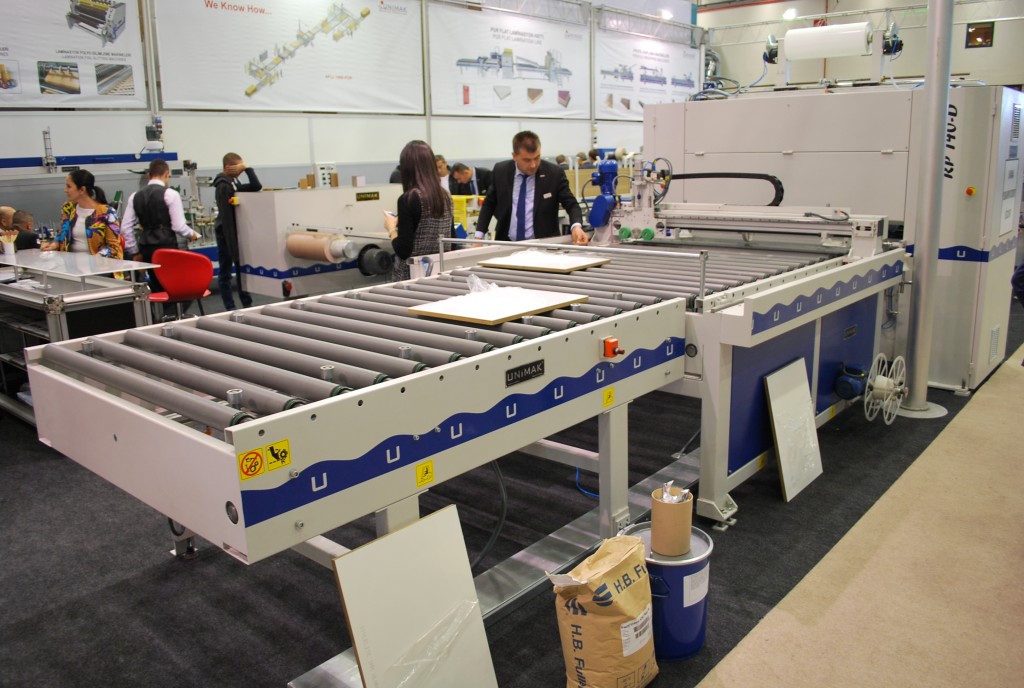

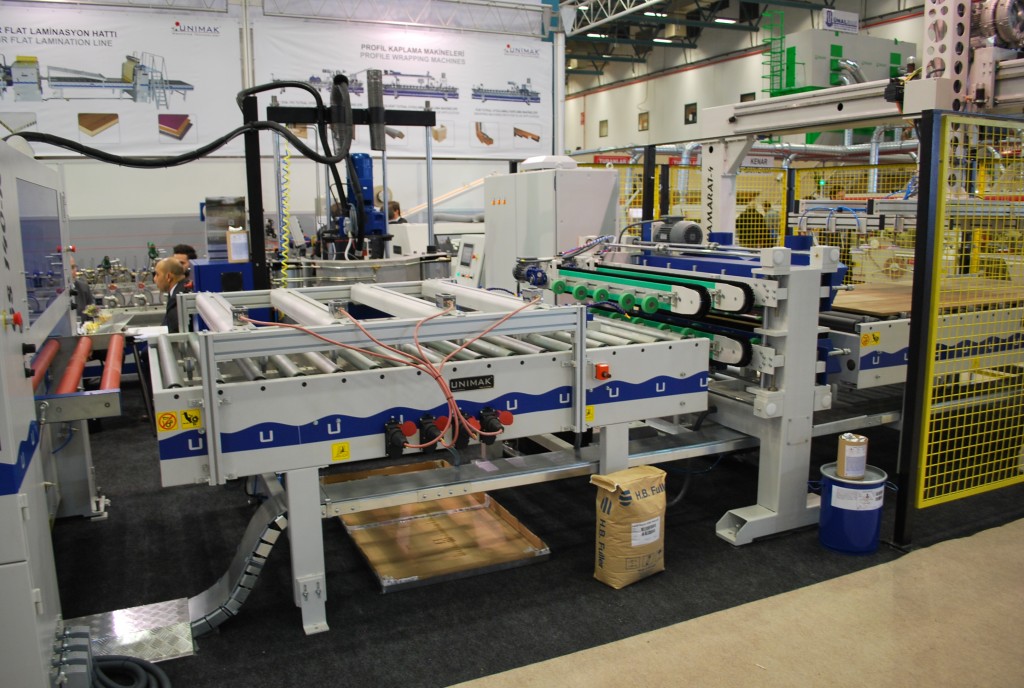

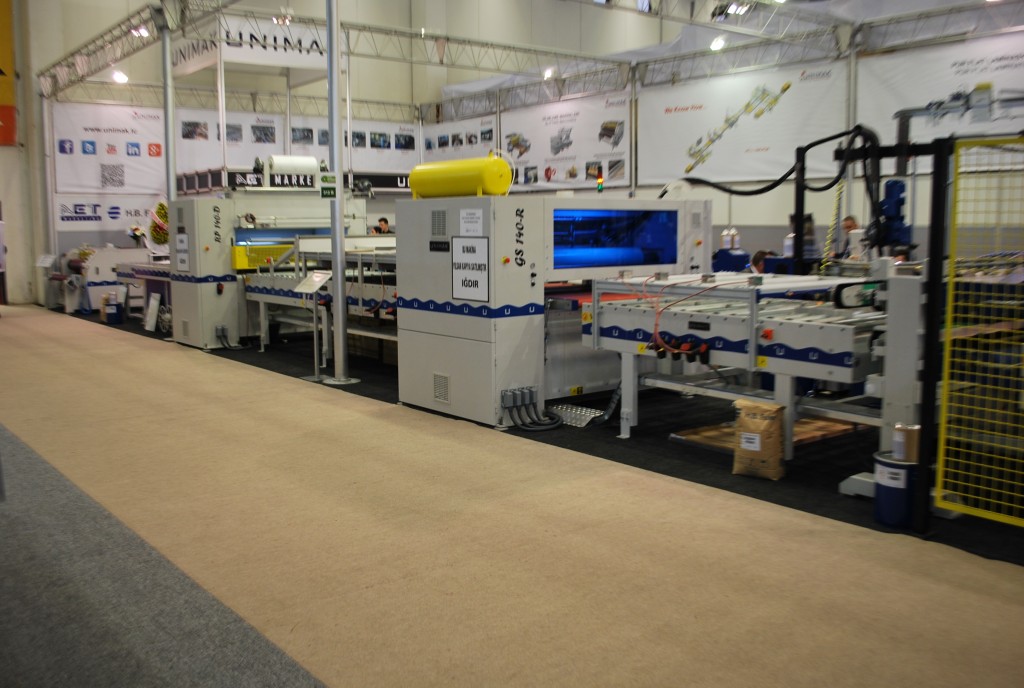

FLL 1400 PUR

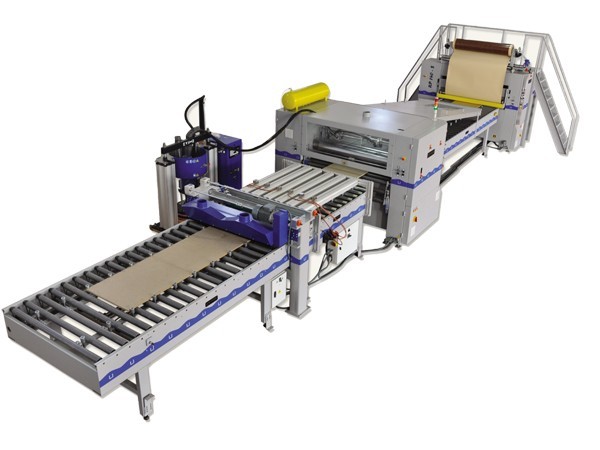

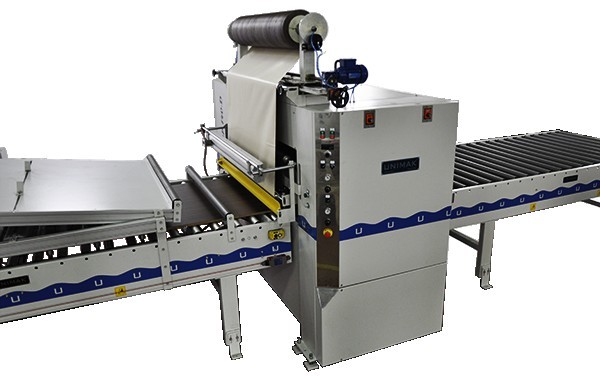

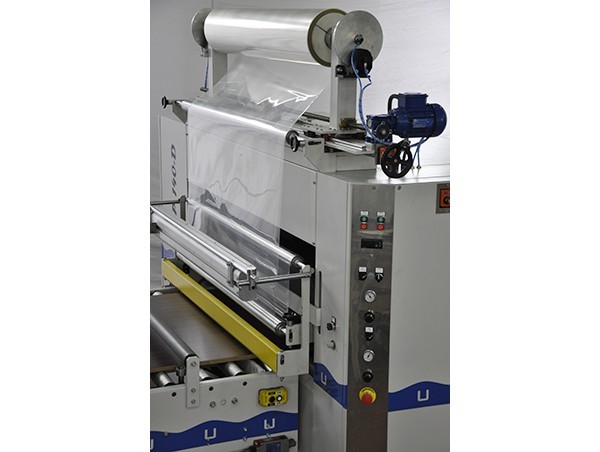

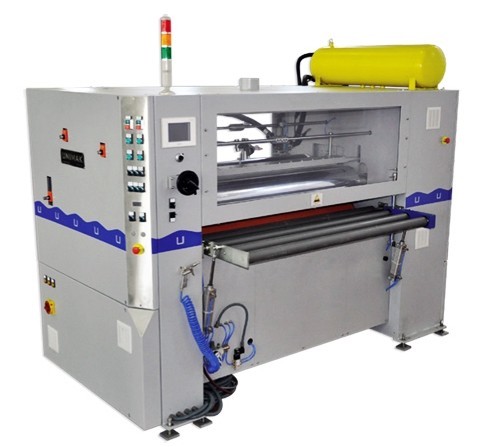

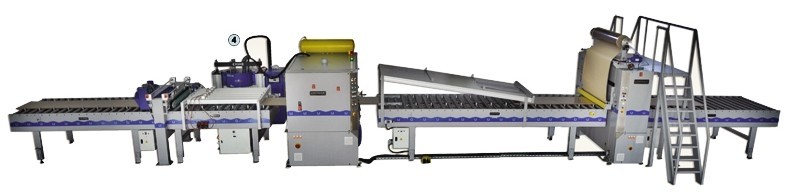

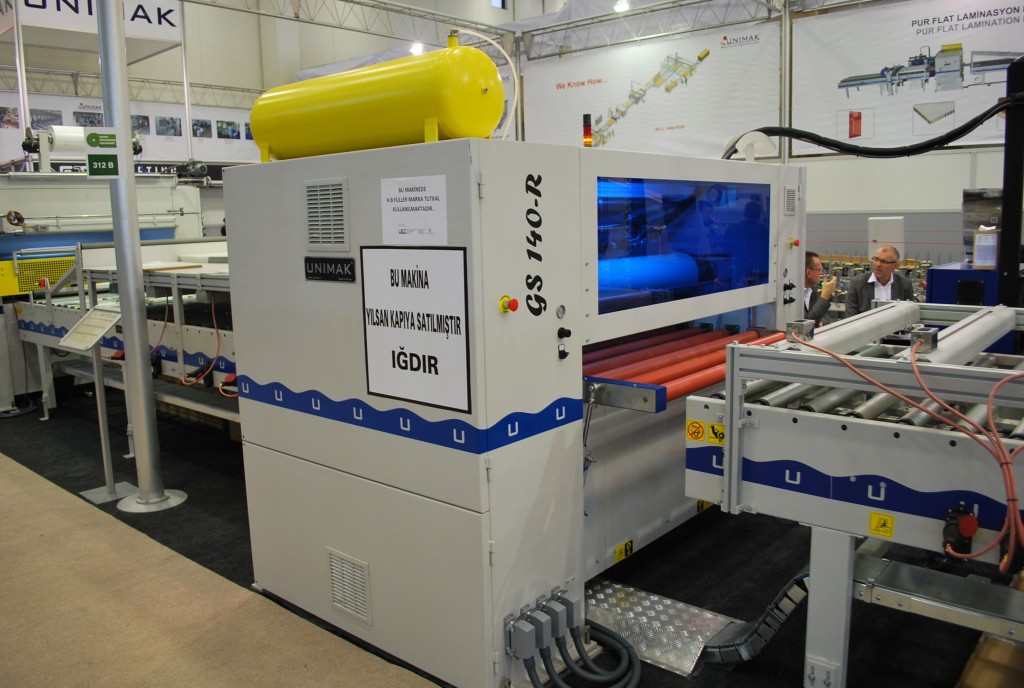

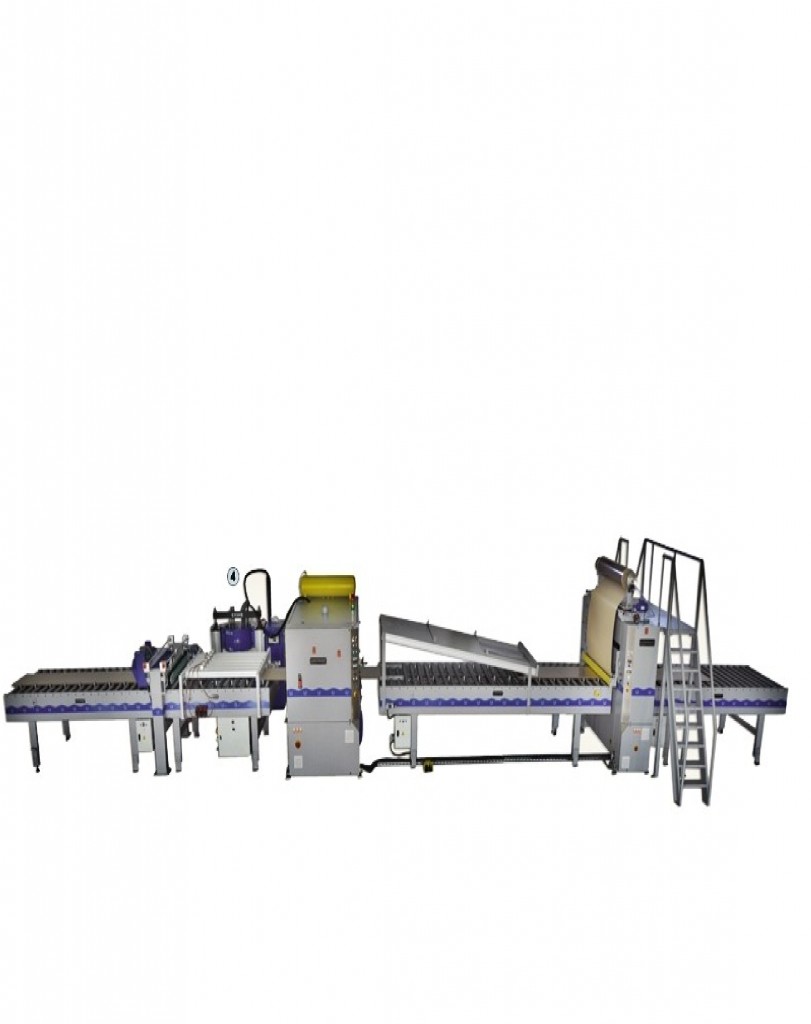

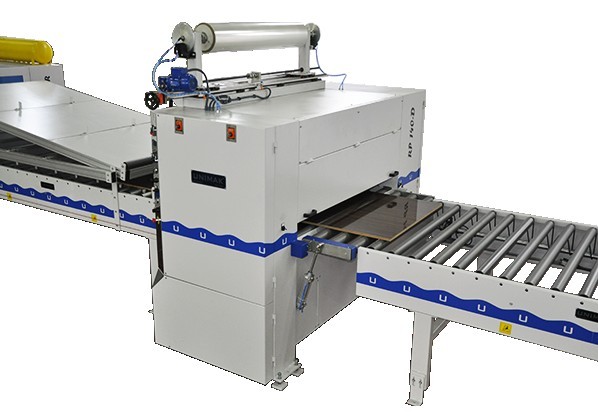

Flat lamination line FLL 1400 PUR  is applicable in lamination various types of panels and various types of foil, using  polyurethane ( PUR ) hotmelt adhesive. Panels are covered with glue using glue rollers and the foil is fed from roll unwinding station or in the case of sheets with a specially prepared ramp. The wrapping processes, parameters and peripheral devices are selected individually and tailor-made for customers.

1

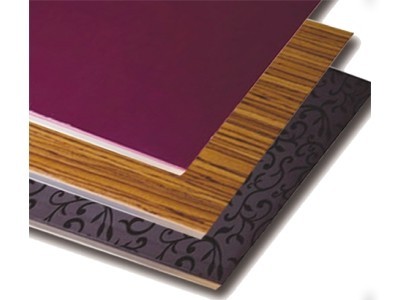

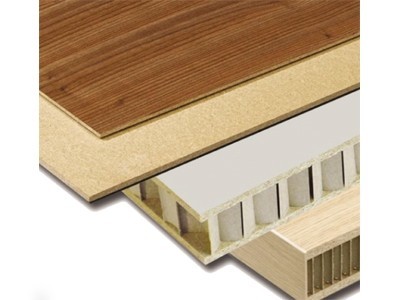

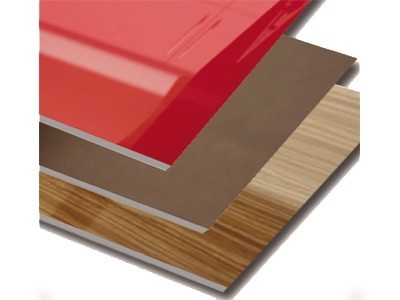

  • Panel type:  MDF, chipboard, furniture panel, XPS and EPS Polistyrene, sandwich panel
  • Foli type: PVC, HIGH GLOSS, ACRYLIC, ABS, P.P., PET, FINISH, Laminate, veneer sheet or roll types
  • Working speed: 10 – 20 m/min
  • Foil width: 250 – 1320 mm
  • Panel width: 250 – 1320 mm
  • Panel thickness: 3 – 60 mm
  • Panel lenght: 500 – 2800 mm
  • Total power: 36 kW
