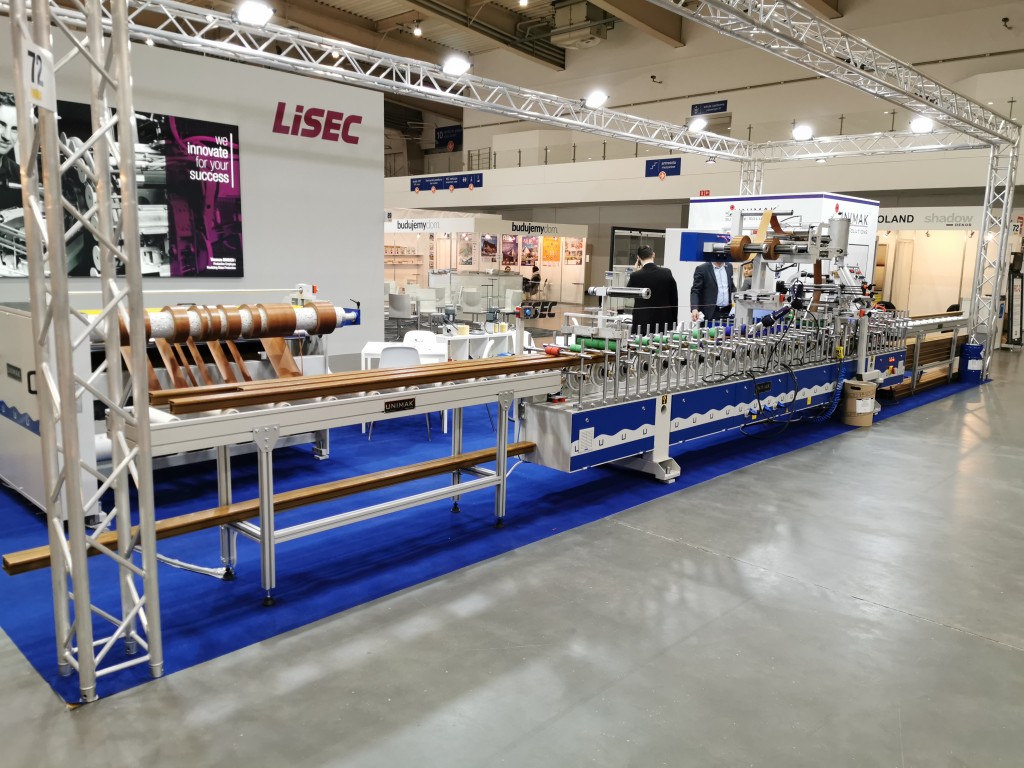

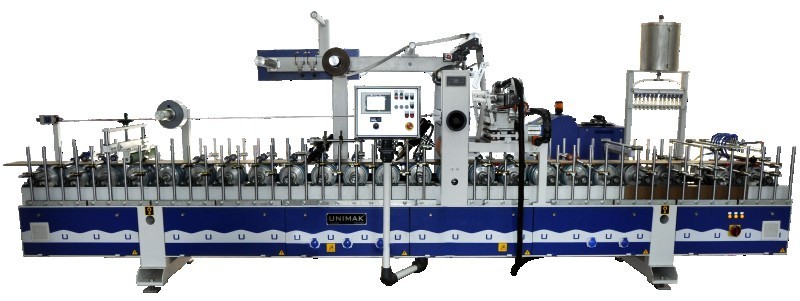

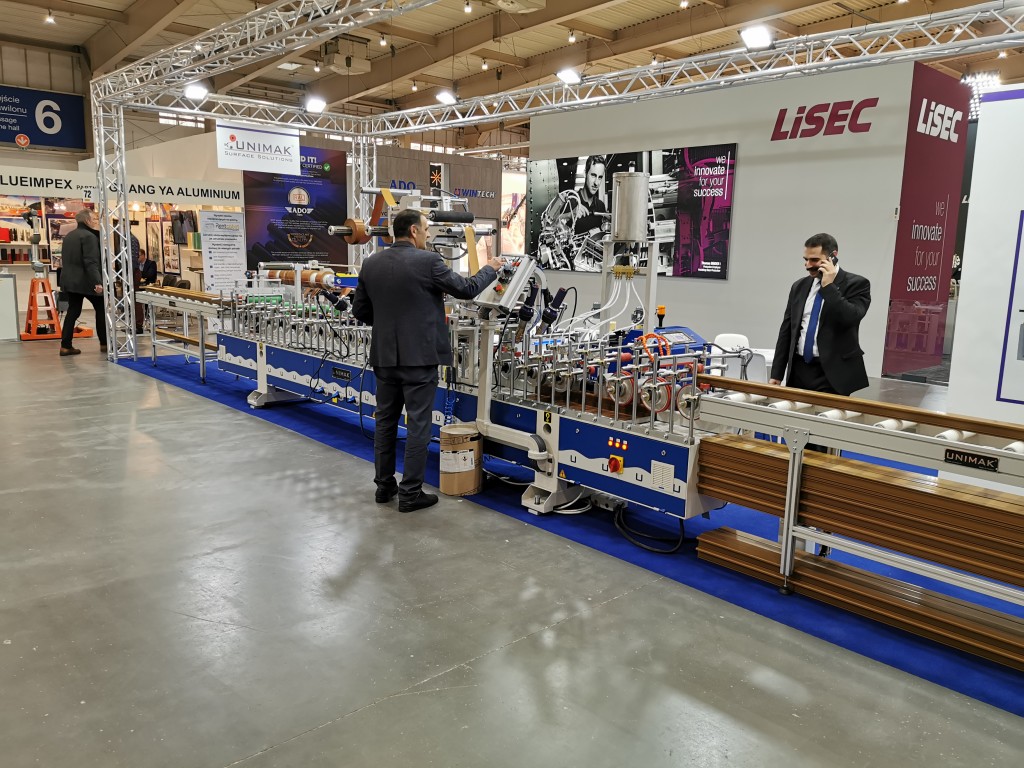

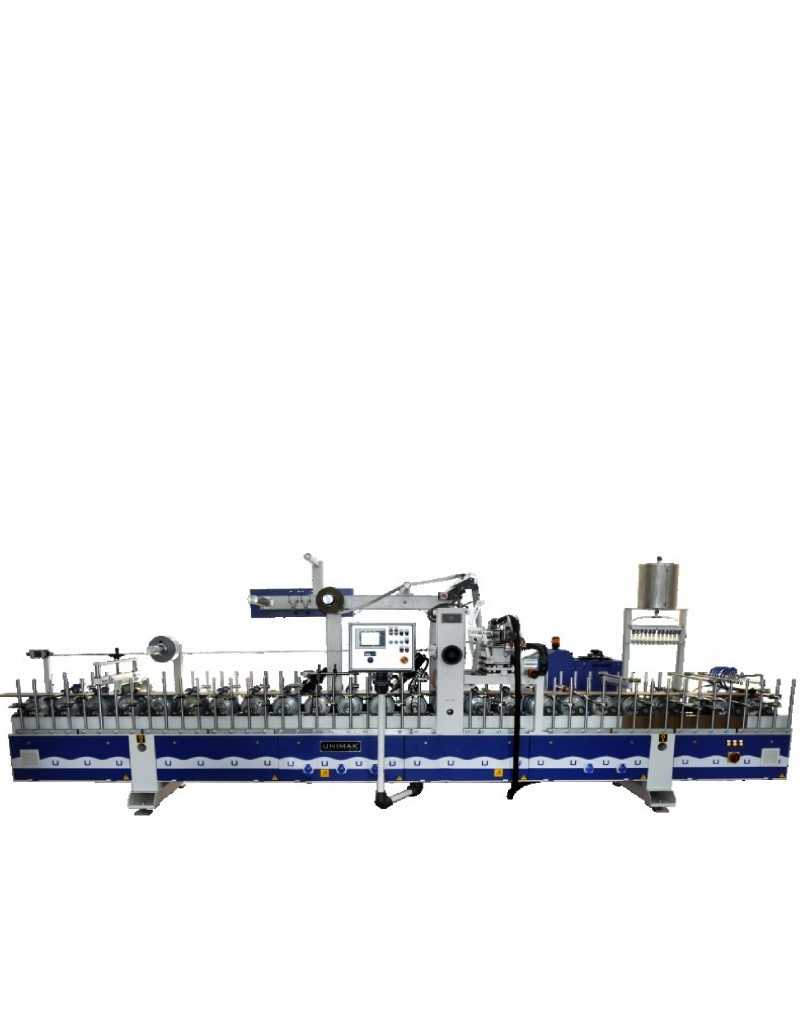

PW 55 W5-P / PW 55 W6-P

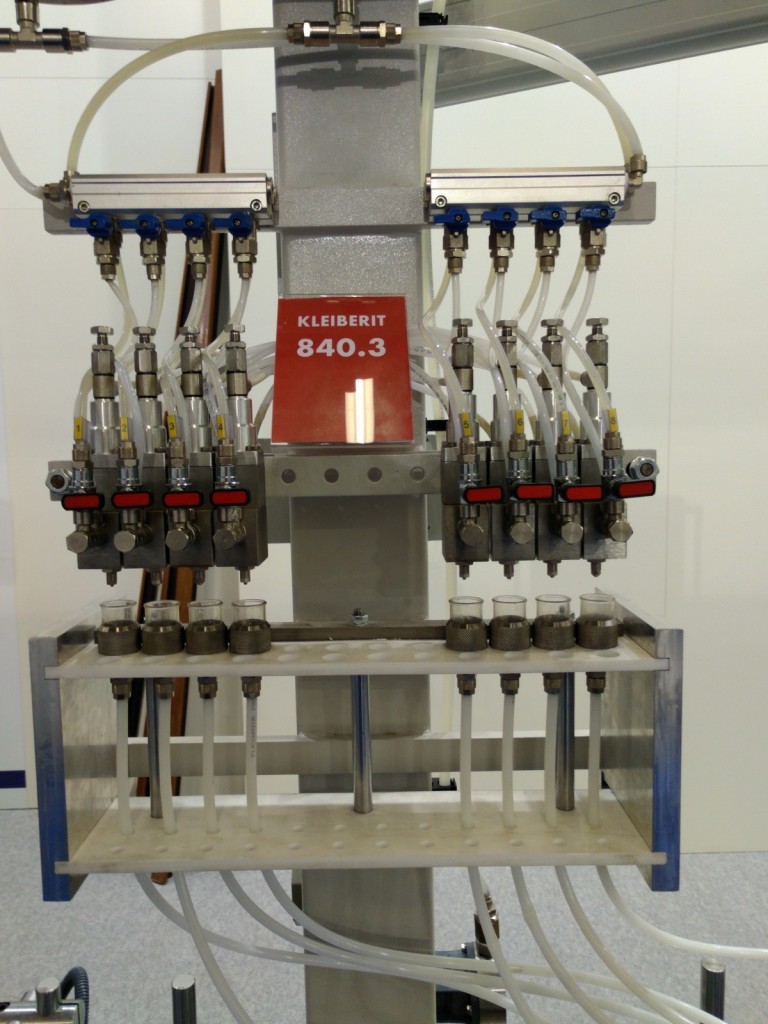

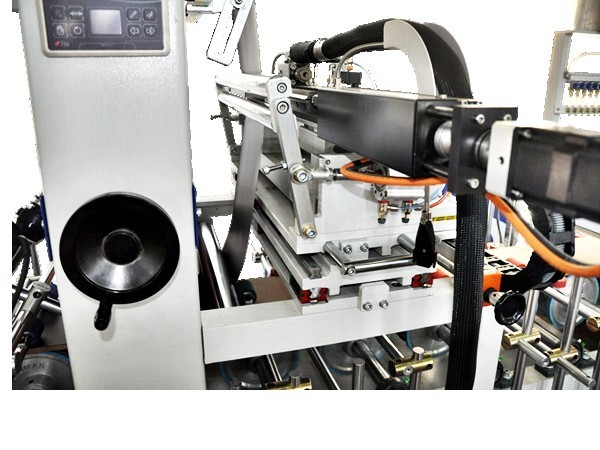

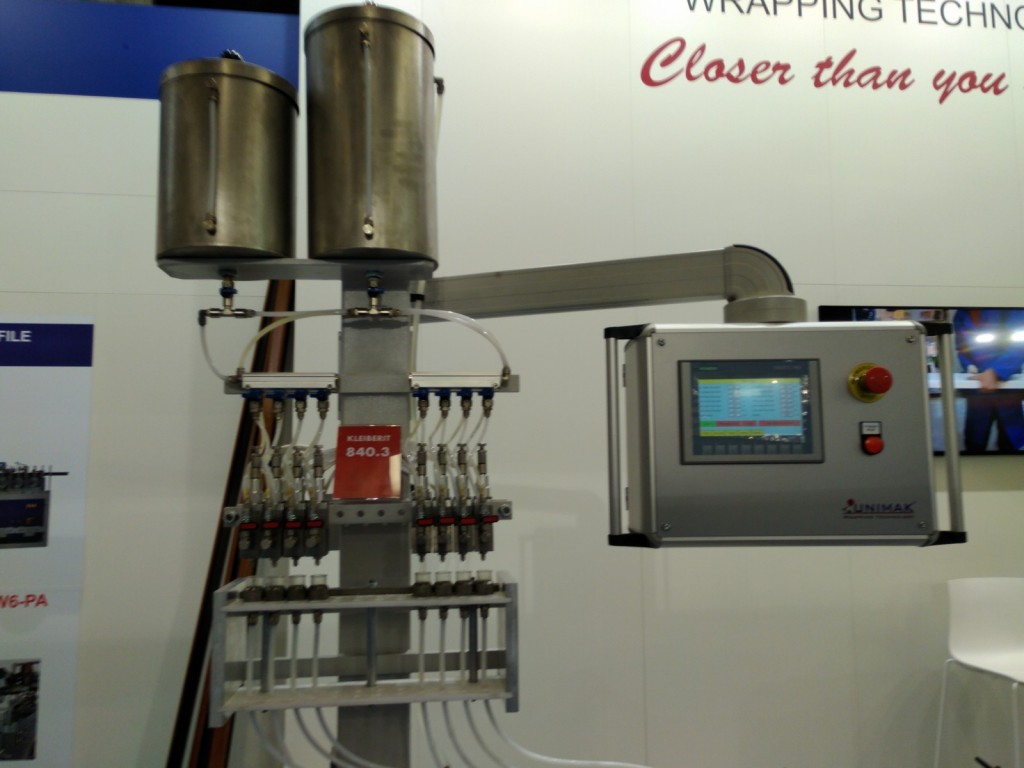

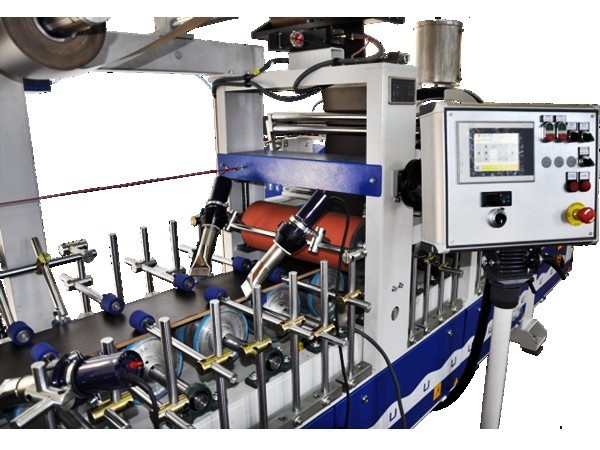

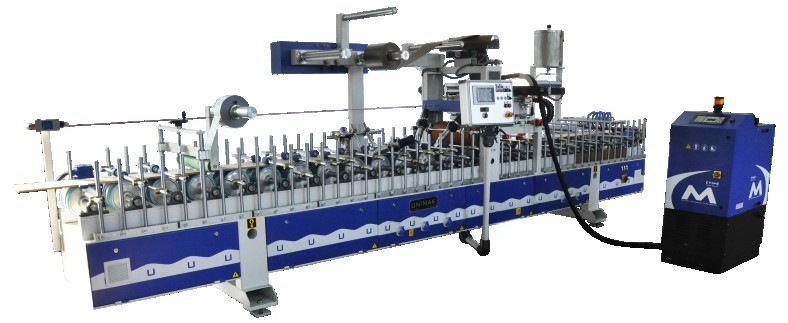

Profile wrapping machine PW 55 W5-P / PW 55 W6-P for wider applications is equipped with a blowing nozzle, primer station and revision UV lamp. With this configuration machine can wrapping, PVC profiles, aluminum profiles, wall panels and window sills . The machine was created for covering with polyurethane hotmelt (PUR) glue, through a slot nozzle with Valco Melton glue tank. This solution allows easily control the amount of glue applied to the foil

99

  • Profile type profiles PVC, aluminium, wall panels and windowsill
  • Foil type:  PVC foils,  acrylic, aluminium, ABS, HIGH GLOSS, P.P.
  • Glue type: Polyurethane hotmelt ( PUR ) glue
  • Machine speed: 10 - 60 m/min
  • Foil width: 20-550 mm
  • Profile width: 20-550 mm
  • Profile height: 125 mm max.
  • Machine lenght: 6000 mm
  • Total power: 30  kW
  • Weight: 2110 kg.
