PW 20 F4-E

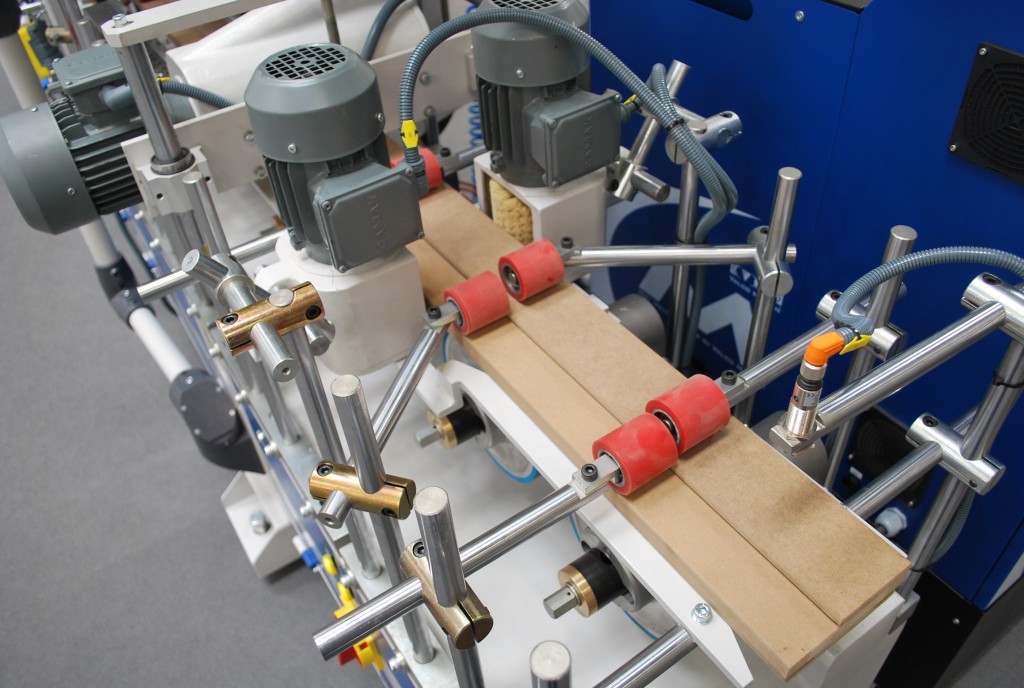

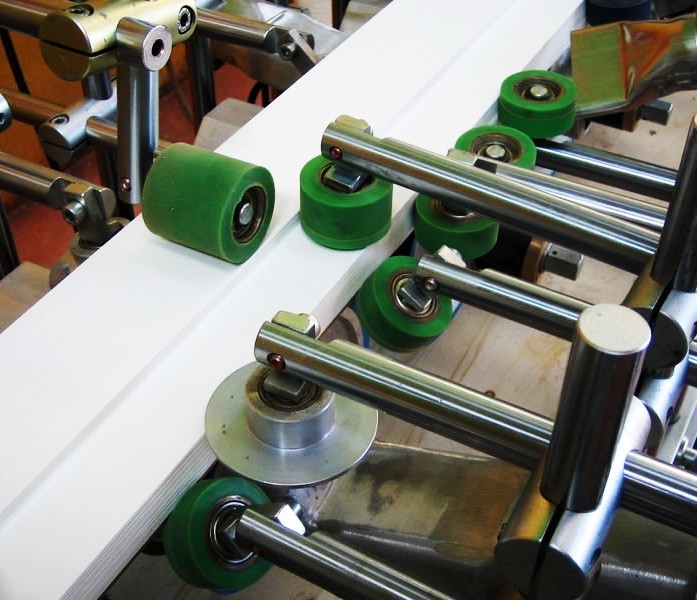

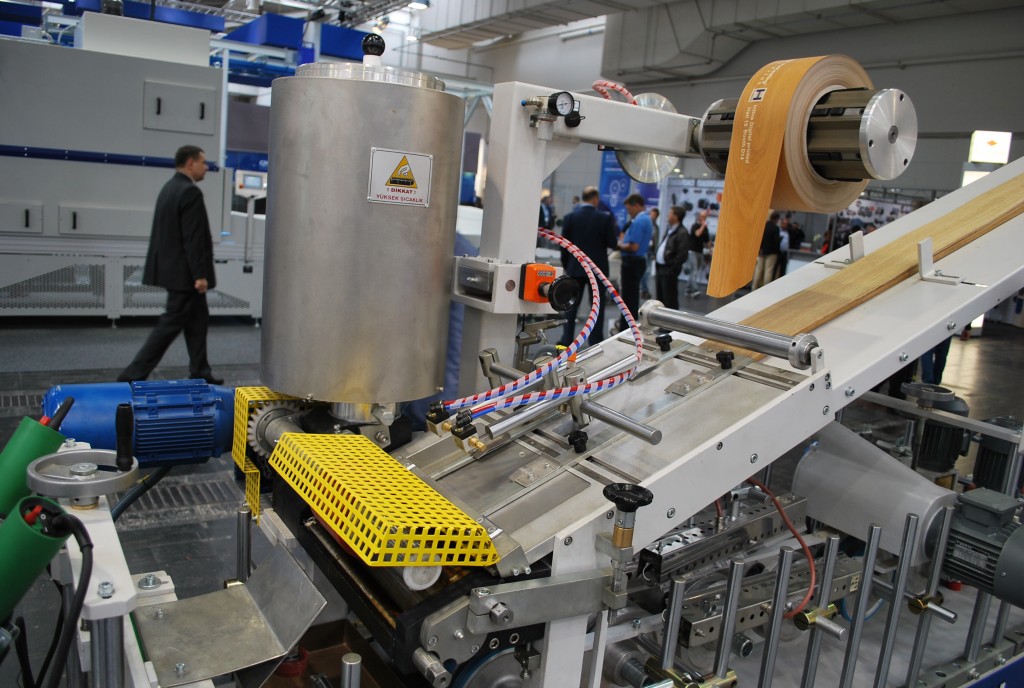

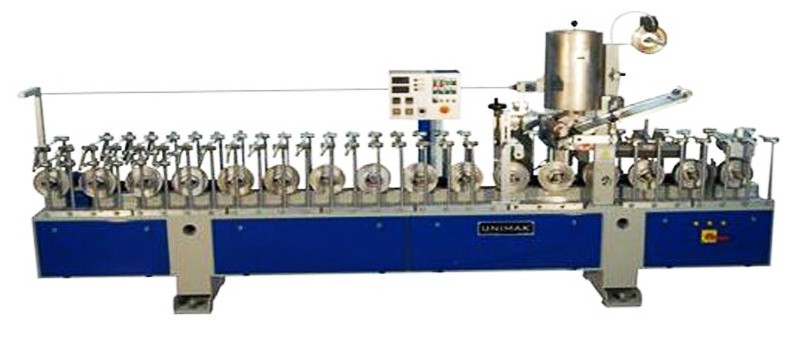

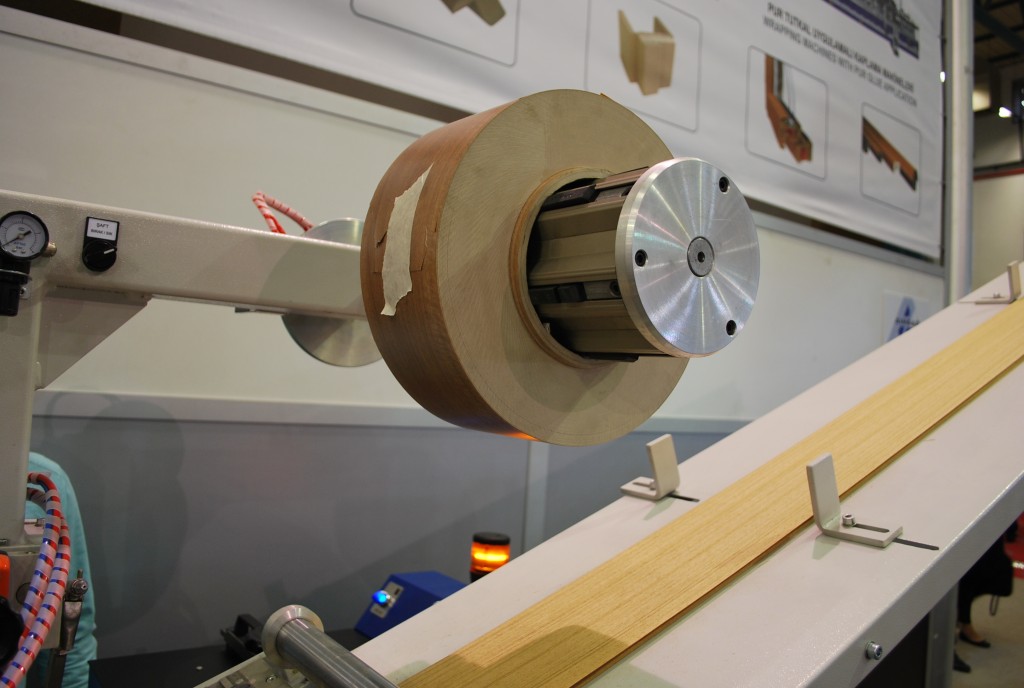

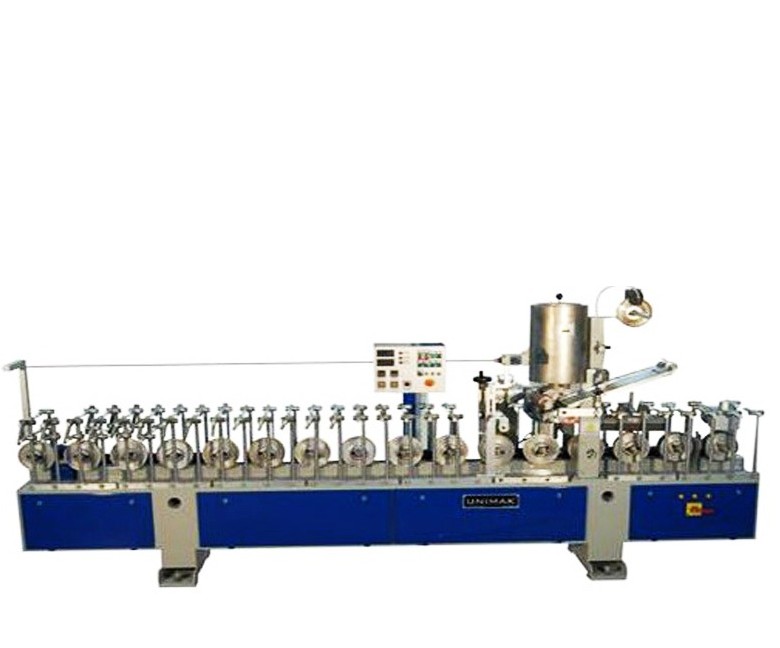

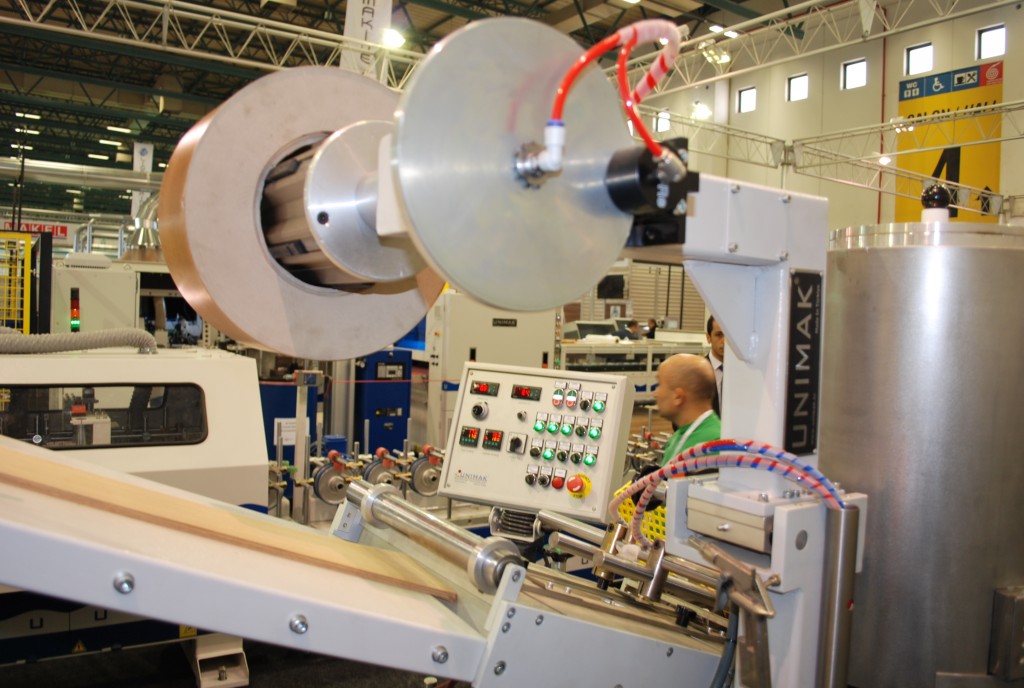

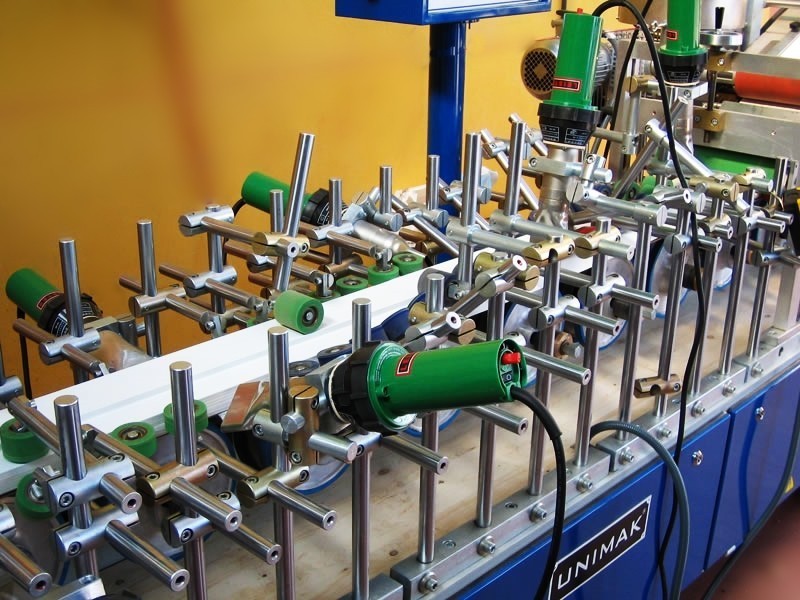

Profile wrapping PW 20 F4-E  is a compact size device for wrapping wooden profile, MDF, frames and casing. The machine has been adapted to be covered with hot melt EVA or PO glue using adhesive roller with a 18l tank With this solution, we can glue materials such as paper, FINISH, CPL, P.P, and natural veneer. In addition, the machine was equipped with a special ramp for feeding veneer in sheets.

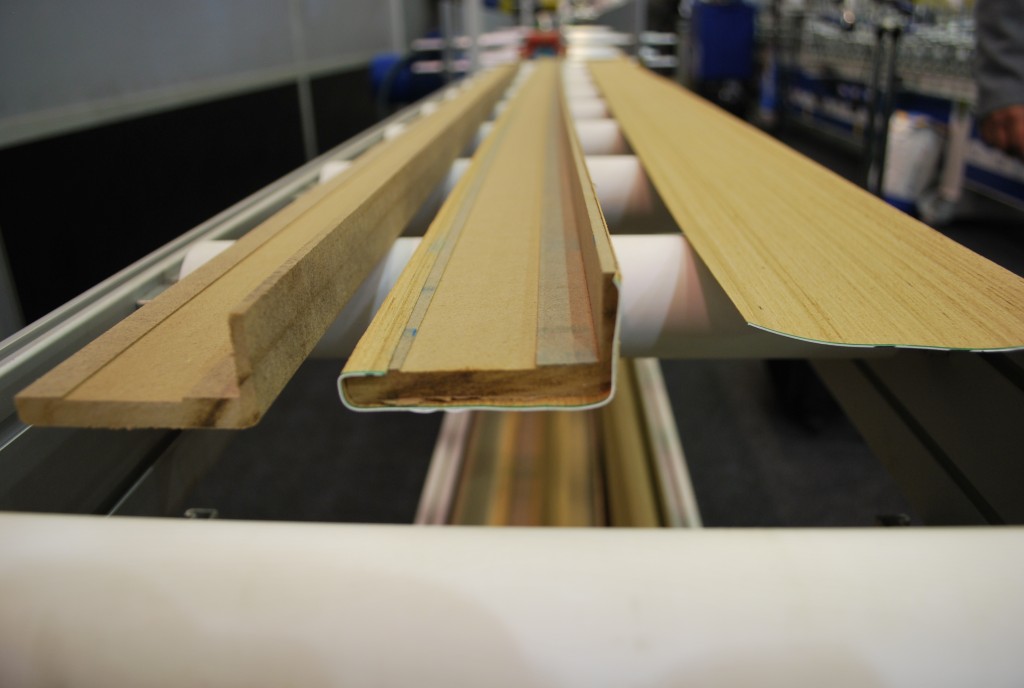

• Profile type: wooden profiles, MDF, wall panels, frame and casing
• Foli type: FINISH foil, CPL,  PP, Veener (rolled or sheet type)
• Glue type: hotmelt  EVA / PO
• Wrapping speed: 10 - 45 m/min
• Foli width: 20-200 mm
• Profile width: 20-200 mm
• Profile height: 125 mm max.
• Maschine lenght: 4000 mm
• Total power: 22 kW
• Maschine weight: 1860 kg.
