FS 1-60

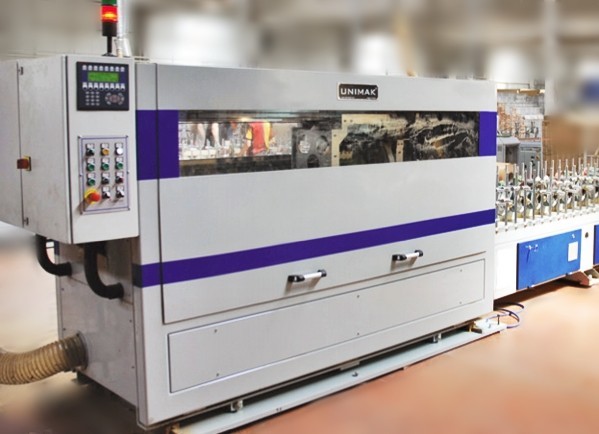

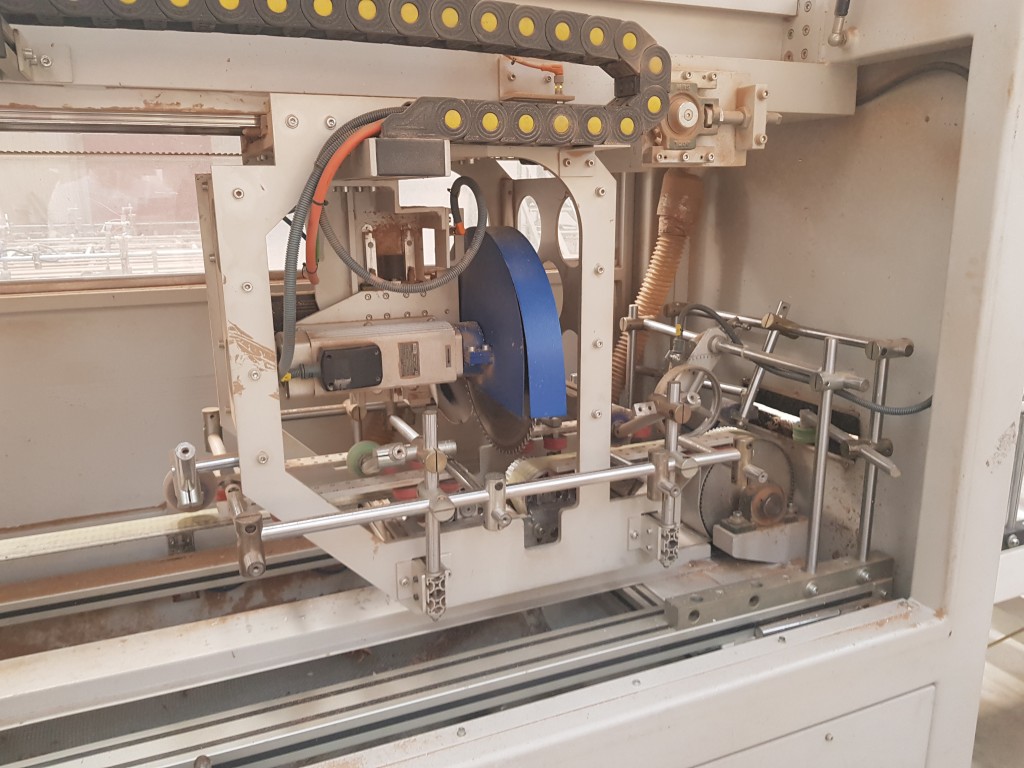

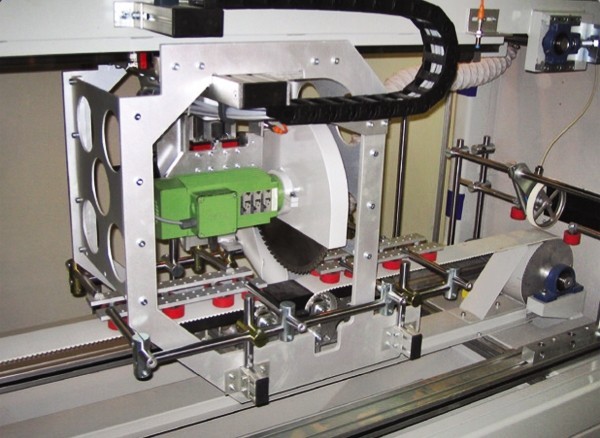

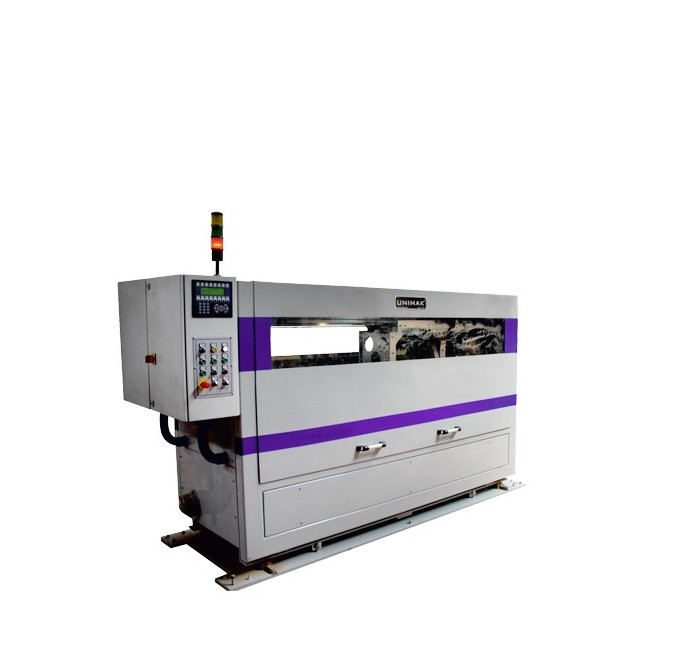

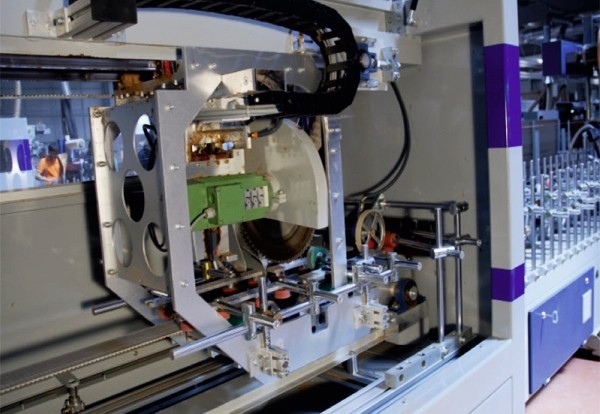

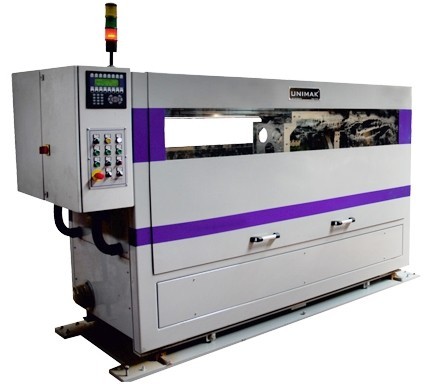

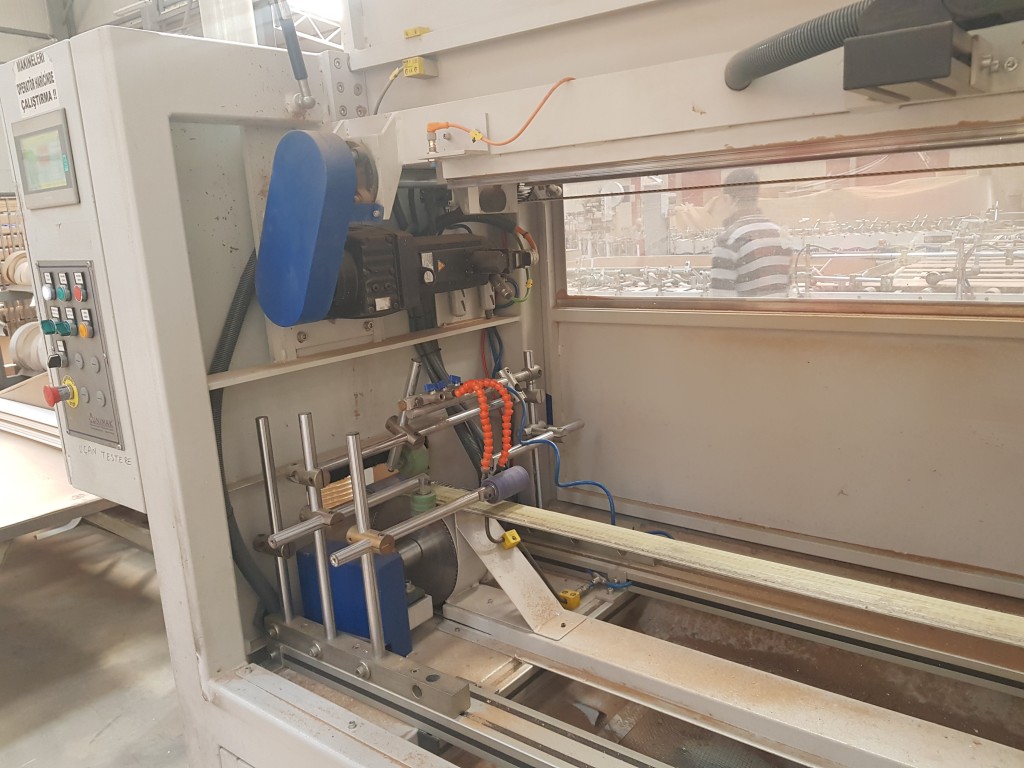

Machine FS 1-60  is a fully automatic flying saw used at the output of the profile wrapping machine, designed to find a joint of two wrapped profile and cut automatically. The servo motor is responsible for  cutting speed, synchronized with the speed of the wrapping machine.

• Working speed: 60 m/min max.
• Profile width: 180 mm
• Profile height: 60 mm
• Profile lenght: 1500 mm min.
• Saw diameter: 400 mm max.
• Machine lenght: 2950 mm
• Machine width: 1200 mm
• Machine height: 1800 mm
• Total power: 6 kW
• Weight: 1500 kg
